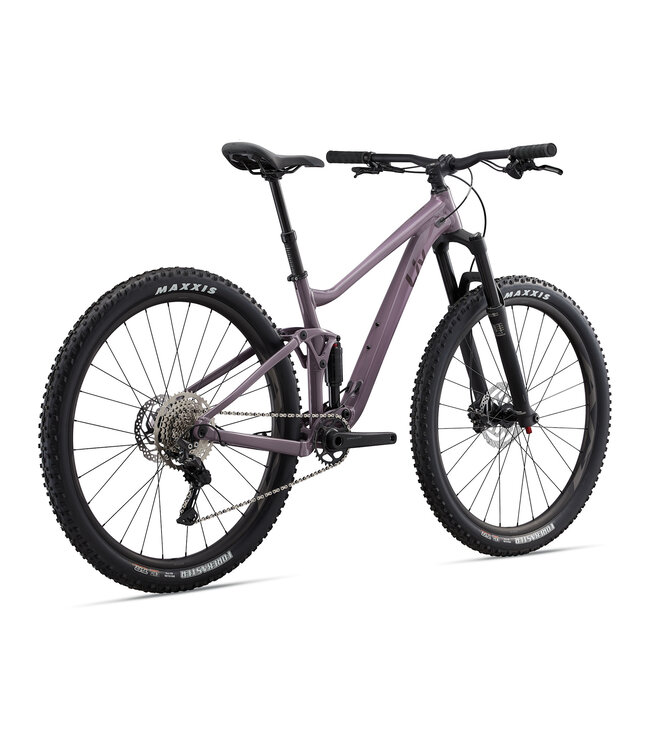

Available in 27.5- and 29-inch wheel size options, select the Embolden that best fits you and where you want to ride.
ALUXX-Grade Aluminium frame, tubeless wheelset, dropper seatpost, Liv Sylvia trail saddle and a 1x drivetrain allow you to tackle new technical terrain with confidence.
The 120mm of FlexPoint Suspension provides an effective, lightweight and durable suspension system so you have increased control while riding over rooty and rocky terrain.
| XS (27.5") | 150 cm - 160 cm |
| S (29") | 158 cm - 169 cm |
| M (29") | 164 cm - 175 cm |
| L (29") | 170 cm - 181 cm |
| XS (27.5") | S (29") | M (29") | L (29") | ||
|---|---|---|---|---|---|
| A | Seat Tube Length (mm) (inch) | 380 | 405 | 420 | 440 |
| B | Seat Tube Angle (degrees) | 74.0° | 76.0° | 76.0° | 76.0° |
| C | Top Tube Length (mm) (inch) | 565 | 565 | 585 | 605 |
| D | Head Tube Length (mm) (inch) | 95 | 105 | 115 | 125 |
| E | Head Tube Angle (degrees) | 67.5° | 67.0° | 67.0° | 67.0° |
| F | Fork Rake (mm) (inch) | 43 | 51 | 51 | 51 |
| G | Trail (mm) (inch) | 103.6 | 105.3 | 105.3 | 105.3 |
| H | Wheelbase (mm) (inch) | 1109 | 1147 | 1169 | 1190 |
| I | Chain Stay Length (mm) (inch) | 435 | 438 | 438 | 438 |
| J | Bottom Bracket Drop (mm) (inch) | 20 | 40 | 40 | 40 |
| K | Stack (mm) (inch) | 560 | 614 | 623 | 632 |
| L | Reach (mm) (inch) | 404 | 412 | 430 | 447 |
| M | Stand Over Height (mm) (inch) | 690 | 712 | 734 | 755 |
| O | Stem Length (mm) (inch) | 40 | 40 | 50 | 50 |
| P | Crank Length (mm) (inch) | 165 | 170 | 170 | 170 |
| Q | Wheel Size | 27.5" | 29" | 29" | 29" |
| Sizes | 27.5": XS, 29": S, M, L |
| Colours | Purple Ash |
| Frame | ALUXX-Grade Aluminium, 120mm FlexPoint Suspension |
| Fork | Giant Crest 34 RCL, 130mm, 15x110 |
| Shock | Suntour Raidon R |
| Handlebar | Giant Connect Trail, alloy, 31.8mm |
| Grips | Giant Sole-O |
| Stem | Giant Contact XS:40mm (27.5) S:50mm, M:50mm, L:60mm (29) |
| Seatpost | Giant Contact Switch dropper, remote XS: 75mm travel / 30.9 x 295mm (27.5) S: 100 M: 125mm travel / 30.9 x 395mm (29) L: 125mm travel / 30.9 x 395mm (29) |
| Saddle | Liv Sylvia |
| Pedals | N/A |
| Shifters | Shimano Deore M4100, 1x10 |
| Front Derailleur | N/A |
| Rear Derailleur | Shimano Deore M5120 |
| Brakes | Shimano BR-MT200, hydraulic, Shimano RT-26 rotors [F]180mm, [R]160mm |
| Brake Levers | Shimano BL-MT201 |
| Cassette | Shimano Deore M4100, 11x46 |
| Chain | KMC X-10 |
| Crankset | Praxis Cadet Boost, 30t XS:165mm (27.5) S:170mm, M:170mm, L:170mm (29) |
| Bottom Bracket | Praxis, press fit |
| Rims | Giant AM 27.5, tubeless ready (XS), Giant AM 29, tubeless ready (S, M, L) |
| Hubs | [F] Alloy 15x110, loose ball [R] Alloy 12x148, loose ball |
| Spokes | Sapim |
| Tires | [F] Maxxis Rekon 27.5x2.6 WT, EXO, TR, tubeless [R] Maxxis Ardent Race 27.5x2.6 WT, EXO, TR, tubeless [F/R] Maxxis Forecaster 29x2.35 WT, EXO, TR, tubeless |
| Extras | Tubeless prepared, max tyre size 2.4", max chainring size 32t |
| Weight | The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality. |
