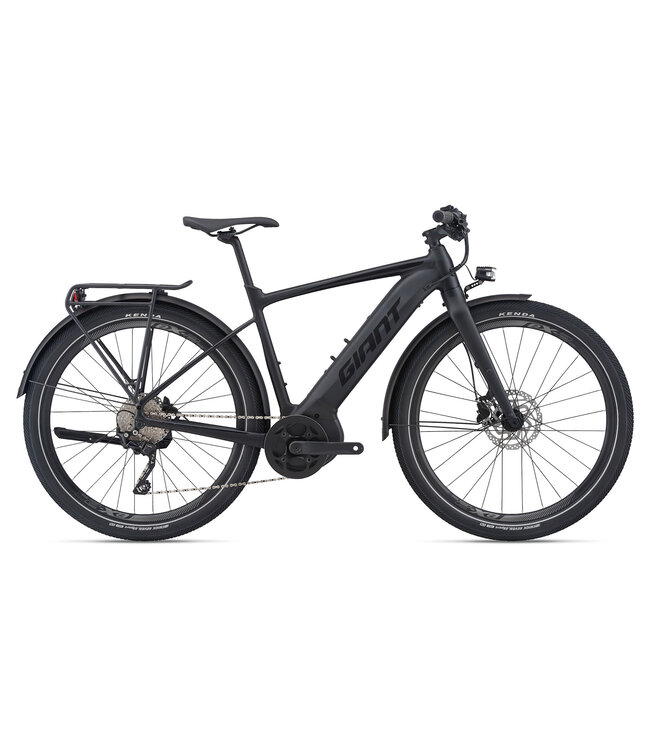

The SyncDrive Pro motor delivers smooth and powerful acceleration, and the durable aluminum frame is fully equipped with a rack, fenders and kickstand.
The new EnergyPak Smart Compact 500 battery delivers long-range power and is smoothly integrated into the frame for sleek design.
Option to carry an EnergyPak Plus range extender, which provides 250Wh of additional power.
| S | 160 cm - 170 cm |
| M | 170 cm - 180 cm |
| ML | 175 cm - 185 cm |
| L | 180 cm - 190 cm |
| XL | 190 cm - 200 cm |
| S | M | ML | L | XL | ||
|---|---|---|---|---|---|---|
| A | Seat Tube Length (mm) (inch) | 450 | 475 | 500 | 525 | 550 |
| B | Seat Tube Angle (degrees) | 74.0° | 73.5° | 73.0° | 73.0° | 72.5° |
| C | Top Tube Length (mm) (inch) | 565 | 575 | 580 | 590 | 610 |
| D | Head Tube Length (mm) (inch) | 110 | 120 | 140 | 160 | 185 |
| E | Head Tube Angle (degrees) | 71.0° | 71.5° | 71.5° | 72.0° | 72.0° |
| F | Fork Rake (mm) (inch) | 45 | 45 | 45 | 45 | 45 |
| G | Trail (mm) (inch) | 74.5 | 71.2 | 71.2 | 67.9 | 67.9 |
| H | Wheelbase (mm) (inch) | 1070 | 1071 | 1071 | 1076 | 1090 |
| I | Chain Stay Length (mm) (inch) | 455 | 455 | 455 | 455 | 455 |
| J | Bottom Bracket Drop (mm) (inch) | 70 | 70 | 70 | 70 | 70 |
| K | Stack (mm) (inch) | 558 | 570 | 589 | 610 | 633 |
| L | Reach (mm) (inch) | 405 | 406 | 400 | 404 | 410 |
| M | Stand Over Height (mm) (inch) | 732 | 752 | 774 | 796 | 818 |
| O | Stem Length (mm) (inch) | 70 | 80 | 80 | 90 | 90 |
| P | Crank Length (mm) (inch) | 170 | 170 | 170 | 170 | 170 |
| Q | Wheel Size | 27.5" | 27.5" | 27.5" | 27.5" | 27.5" |
| Motor | SyncDrive Pro, 80Nm, powered by Yamaha |
| Controller | RideControl Ergo |
| Display | RideDash Evo |
| Battery | EnergyPak Smart Compact 500Wh EnergyPak Plus range extender compatible |
| Charger | EnergyPak 6A smart charger |
| Sizes | XS, S, M, ML, L, XL |
| Colours | Black |
| Frame | ALUXX grade Aluminium |
| Fork | ALUXX grade Aluminium, 12x100 thru-axle |
| Shock | N/A |
| Handlebar | Giant Connect XC Riser 31.8mm |
| Grips | Giant Contact Ergo |
| Stem | Giant Contact |
| Seatpost | Giant D-Fuse, alloy, 14mm offset |
| Saddle | Giant Sport |
| Pedals | Platform |
| Shifters | Shimano Tiagra |
| Front Derailleur | - |
| Rear Derailleur | Shimano GRX RX400, 10-speed |
| Brakes | Shimano BR-MT200, hydraulic disc, [F]180mm, [R]160mm |
| Brake Levers | Shimano BL-MT201 |
| Cassette | Shimano HG-50, 11-36, 10-speed |
| Chain | KMC e.10 Sport |
| Crankset | Forged Alloy minimal Q-factor, 42T XS:165mm, S:165mm, M:170mm, M/L: 170mm, L:170mm, XL:170mm |
| Bottom Bracket | N/A |
| Rims | Giant eX-2, Tubeless Ready |
| Hubs | Giant Performance Tracker Road, Sealed Bearing |
| Spokes | Sapim |
| Tires | Kenda Kwick Seven.5, 27.5x2.40" |
| Extras | Giant KSA18 direct mount kickstand |
| Lighting | Axa BlueLine 50 front Axa Blueline rear |
| Carrier | Giant Rack-It MIK |
| Weight | The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality. |
