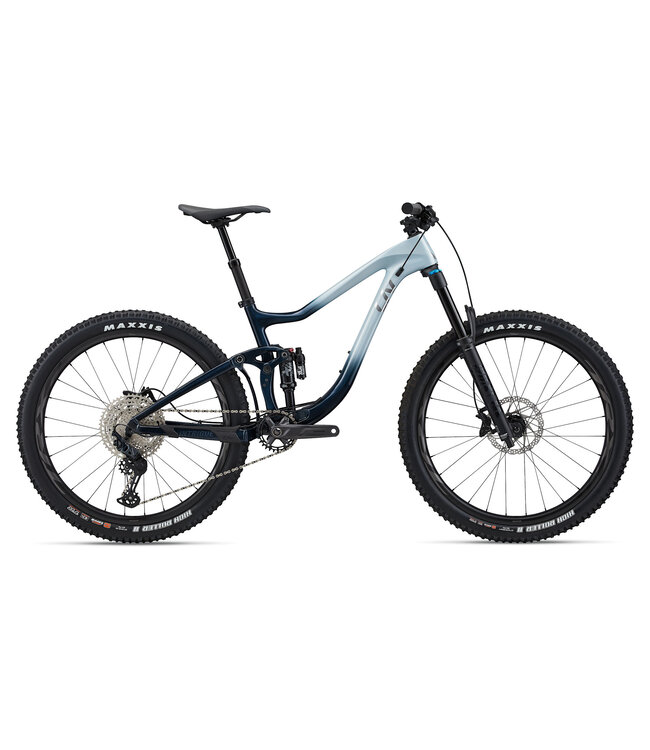

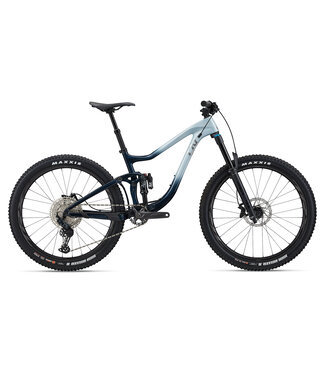

The geometry of the Intrigue’s ultra-lightweight Advanced-Grade Composite frame provides a stable, capable design, making it suited to tackle any terrain.
With a versatile 150 mm/ 140 mm platform and 27.5-inch tubeless-ready wheels compatible with up to 2.6-inch tyres, the Intrigue is designed for both climbing agility and downhill control.
The 140 mm of Maestro Suspension has been custom tuned by women, for women to provide optimal performance for the rider and the bike’s intended use, resulting in improved traction and control.
| XS | 148 cm - 163 cm |
| S | 158 cm - 169 cm |
| M | 164 cm - 175 cm |
| XS | S | M | ||
|---|---|---|---|---|
| A | Seat Tube Length (mm) (inch) | 380 | 406 | 445 |
| B | Seat Tube Angle (degrees) | 74.5° | 74.5° | 74.5° |
| C | Top Tube Length (mm) (inch) | 565 | 580 | 595 |
| D | Head Tube Length (mm) (inch) | 95 | 100 | 105 |
| E | Head Tube Angle (degrees) | 66.5° | 66.5° | 66.5° |
| F | Fork Rake (mm) (inch) | 44 | 44 | 44 |
| G | Trail (mm) (inch) | 109.6 | 109.6 | 109.6 |
| H | Wheelbase (mm) (inch) | 1135 | 1151 | 1167 |
| I | Chain Stay Length (mm) (inch) | 438 | 438 | 438 |
| J | Bottom Bracket Drop (mm) (inch) | 15 | 15 | 15 |
| K | Stack (mm) (inch) | 577 | 582 | 587 |
| L | Reach (mm) (inch) | 405 | 418 | 432 |
| M | Stand Over Height (mm) (inch) | 691 | 707 | 735 |
| O | Stem Length (mm) (inch) | 40 | 40 | 50 |
| P | Crank Length (mm) (inch) | 165 | 170 | 170 |
| Q | Wheel Size | 27.5" | 27.5" | 27.5" |
| Sizes | XS, S, M |
| Colours | Nordic Breeze / Cosmos Navy/Chrome |
| Frame | Advanced-Grade Composite front triangle, 140mm Maestro Suspension, ALUXX-SL rear triangle |
| Fork | Fox 36 Float Performance, 150mm, GRIP damper, Boost, 15x110, tapered, 44mm offset, custom tuned for Liv |
| Shock | Fox Float X Performance 185/52.5, custom tuned for Liv |
| Handlebar | Giant Contact TR35, alloy, 35mm |
| Grips | Liv Supera, single lock ring |
| Stem | Giant Contact SL, 35mm XS:40mm, S:50mm, M:50mm |
| Seatpost | Giant Contact Switch dropper, remote |
| Saddle | Liv Sylvia |
| Pedals | Platform |
| Shifters | Shimano SLX, 1x12 |
| Front Derailleur | N/A |
| Rear Derailleur | Shimano SLX |
| Brakes | Shimano BR-MT520, hydraulic, Shimano RT-56 rotors [F]180mm, [R]180mm |
| Brake Levers | Shimano MT501 |
| Cassette | Shimano Deore, 10x51 |
| Chain | KMC X-12 |
| Crankset | Shimano Deore, 30t XS:165mm, S:170mm, M:170mm |
| Bottom Bracket | Shimano, press fit |
| Rims | Giant TRX-2 27.5 WheelSystem |
| Hubs | Giant TRX-2 27.5 WheelSystem |
| Spokes | Giant TRX-2 27.5 WheelSystem |
| Tires | [F] Maxxis High Roller 27.5x2.5WT, 3C, EXO, TR, tubeless [R] Maxxis High Roller 27.5x2.4WT, 3C, EXO, TR, tubeless |
| Extras | Tubeless prepared, max tyre size 2.6", max chainring size 32t |
| Weight | The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality. |
