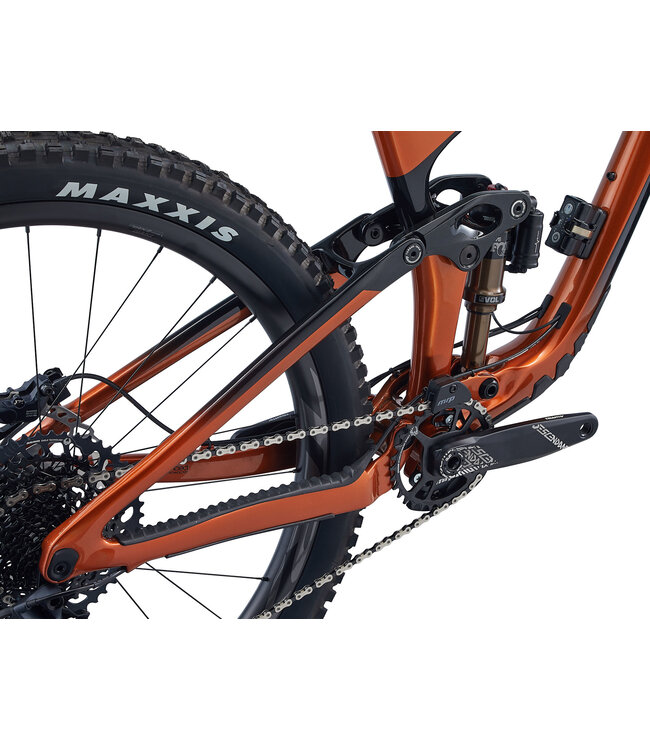

Maestro rear suspension developed and tested under extreme conditions of Enduro World Series races. The trunnion mount shock has a longer stroke and smoother feel, and the Advanced Forged Composite upper rocker arm adds stiffness while lowering overall frame weight.
The purpose-built composite frameset helps you ride aggressive descents and rail corners with confidence. Enduro-optimised head and seattube angles, plus a 170mm fork with 44mm offset, produce confident front-end handling.
Larger 29-inch diameter wheels optimised to roll over rugged enduro terrain with improved balance and stability, giving you the momentum to crank up tough climbs and the confidence to fly on fast, technical descents.
| S | 163 cm - 172 cm |
| M | 171 cm - 180 cm |
| L | 179 cm - 188 cm |
| XL | 187 cm - 198 cm |
| S | M | L | XL | ||
|---|---|---|---|---|---|
| A | Seat Tube Length (mm) (inch) | 431 | 431 | 464 | 496 |
| B | Seat Tube Angle (degrees) | 76.4° | 76.4° | 76.4° | 76.4° |
| C | Top Tube Length (mm) (inch) | 574 | 601 | 640 | 666 |
| D | Head Tube Length (mm) (inch) | 100 | 100 | 110 | 120 |
| E | Head Tube Angle (degrees) | 64.6° | 64.6° | 64.6° | 64.6° |
| F | Fork Rake (mm) (inch) | 44 | 44 | 44 | 44 |
| G | Trail (mm) (inch) | 132.7 | 132.7 | 132.7 | 132.7 |
| H | Wheelbase (mm) (inch) | 1191 | 1220 | 1262 | 1289 |
| I | Chain Stay Length (mm) (inch) | 439 | 439 | 439 | 439 |
| J | Bottom Bracket Drop (mm) (inch) | 27 | 27 | 27 | 27 |
| K | Stack (mm) (inch) | 622 | 622 | 631 | 640 |
| L | Reach (mm) (inch) | 423 | 451 | 488 | 511 |
| M | Stand Over Height (mm) (inch) | 757 | 759 | 781 | 804 |
| O | Stem Length (mm) (inch) | 40 | 40 | 40 | 40 |
| P | Crank Length (mm) (inch) | 165 | 170 | 170 | 170 |
| Q | Wheel Size | 29" | 29" | 29" | 29" |
| Sizes | S, M, L, XL |
| Colours | Amber Glow / Rainbow Black |
| Frame | Advanced-Grade Composite front and rear triangles, 146mm Maestro suspension, 12x148mm thru-axle |
| Fork | Fox 38 Factory Live Valve, 170mm, FIT4 damper, 15x110 Kabolt X, 44mm offset, custom tuned for Giant |
| Shock | Fox Factory Live Valve, custom tuned for Giant |
| Handlebar | Giant Contact SLR TR35, composite, 35mm |
| Grips | Giant Tactal Pro Single lock-on |
| Stem | Giant Contact SL 35 S:40mm, M:40mm, L:40mm, XL:40mm |
| Seatpost | TranzX travel-adjustable dropper, remote |
| Saddle | Giant Romero SL |
| Pedals | N/A |
| Shifters | SRAM GX Eagle, 1x12 |
| Front Derailleur | N/A |
| Rear Derailleur | SRAM GX Eagle |
| Brakes | Shimano SLX M7120, hydraulic, Shimano RT-66 rotors [F]203mm, [R]203mm |
| Brake Levers | Shimano SLX BL-M7100 |
| Cassette | SRAM XG-1275 Eagle, 10x52 |
| Chain | SRAM GX Eagle |
| Crankset | TruVativ Descendent 6k, DUB, 32t S:165mm, M:170mm, L:170mm, XL:170mm |
| Bottom Bracket | SRAM DUB, press fit |
| Rims | Giant TRX 2 29 WheelSystem |
| Hubs | Giant TRX 2 29 WheelSystem |
| Spokes | Giant TRX 2 29 WheelSystem |
| Tires | [F] Maxxis Assegai 29x2.5 WT, 3C MaxxTerra, EXO+, TR [R] Maxxis Minion DHR II 29x2.4 WT, 3C MaxxTerra , EXO+, TR tubeless |
| Extras | Tubeless prepared, 2.5" max tyre size, 36t max chainring size, MRP AMG CS chain guide, 3M tailgate protector |
| Weight | The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality. |
