27.5+ wheel and tyre compatibility give you added confidence and control on the trail.

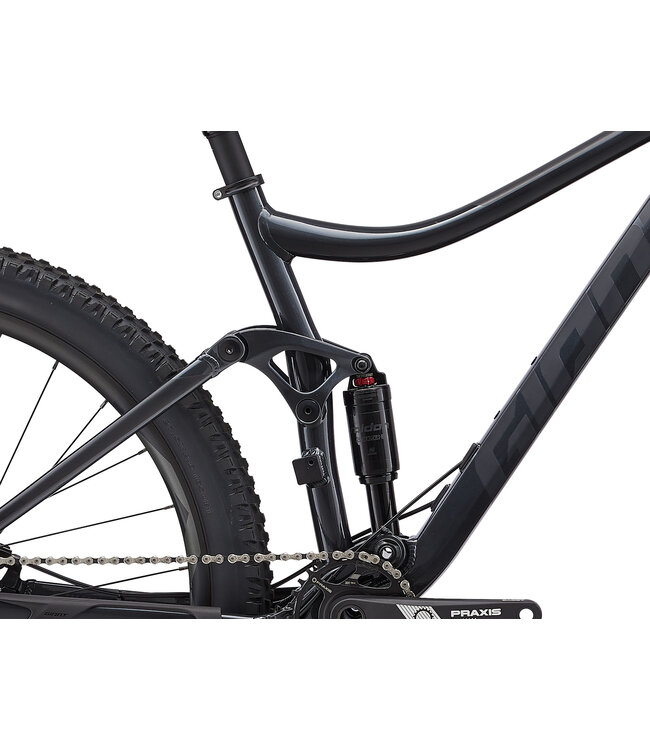

FlexPoint rear suspension offers 120mm of travel (plus 130mm fork up front) for smooth-riding confidence on climbs and descents.
The lightweight, stiff and durable ALUXX aluminium is hand-built and engineered in-house by the world leader in alloy bicycle technology.
| XS | 155 cm - 165 cm |
| S | 163 cm - 172 cm |
| M | 171 cm - 180 cm |
| L | 179 cm - 188 cm |
| XL | 187 cm - 198 cm |
| XS | S | M | L | XL | ||
|---|---|---|---|---|---|---|
| A | Seat Tube Length (mm) (inch) | 390 | 400 | 431 | 482 | 507 |
| B | Seat Tube Angle (degrees) | 74.0° | 74.0° | 74.0° | 74.0° | 74.0° |
| C | Top Tube Length (mm) (inch) | 565 | 585 | 605 | 625 | 645 |
| D | Head Tube Length (mm) (inch) | 100 | 100 | 105 | 130 | 145 |
| E | Head Tube Angle (degrees) | 67.5° | 67.5° | 67.5° | 67.5° | 67.5° |
| F | Fork Rake (mm) (inch) | 44 | 44 | 44 | 44 | 44 |
| G | Trail (mm) (inch) | 103.6 | 103.6 | 103.6 | 103.6 | 103.6 |
| H | Wheelbase (mm) (inch) | 1110 | 1130 | 1151 | 1174 | 1195 |
| I | Chain Stay Length (mm) (inch) | 435 | 435 | 435 | 435 | 435 |
| J | Bottom Bracket Drop (mm) (inch) | 20 | 20 | 20 | 20 | 20 |
| K | Stack (mm) (inch) | 566 | 566 | 571 | 594 | 608 |
| L | Reach (mm) (inch) | 403 | 423 | 441 | 455 | 471 |
| M | Stand Over Height (mm) (inch) | 698 | 703 | 727 | 761 | 774 |
| O | Stem Length (mm) (inch) | 40 | 50 | 50 | 60 | 70 |
| P | Crank Length (mm) (inch) | 165 | 165 | 170 | 170 | 170 |
| Q | Wheel Size | 27.5" | 27.5" | 27.5" | 27.5" | 27.5" |
| Sizes | XS, S, M, L, XL |
| Colours | Gloss Gunmetal Black / Matte Black |
| Frame | ALUXX-Grade Aluminium, 120mm FlexPoint suspension |
| Fork | Giant Crest 34 RCL, 130mm, Boost 15x110 |
| Shock | Suntour Raidon R |
| Handlebar | Giant Connect Trail, 31.8mm |
| Grips | Giant Sole-O |
| Stem | Giant Contact XS:40mm, S:50mm, M:50mm, L:60mm, XL:70mm |
| Seatpost | Giant Contact Switch dropper, remote |
| Saddle | Giant Romero |
| Pedals | N/A |
| Shifters | Shimano Deore M4100, 1x10 |
| Front Derailleur | N/A |
| Rear Derailleur | Shimano Deore M5120 |
| Brakes | Shimano BR-MT200, hydraulic, Shimano RT-26 rotors [F]180mm, [R]160mm |
| Brake Levers | Shimano BL-MT201 |
| Cassette | Shimano Deore, 11-46 |
| Chain | KMC X10 |
| Crankset | Praxis Cadet M24, 30t XS: 165mm, S:165mm, M:170mm, L:170mm, XL:170mm |
| Bottom Bracket | Praxis, press fit |
| Rims | Giant AM 27.5 alloy, tubeless ready |
| Hubs | [F] Alloy 15x110, loose ball [R] Alloy QR141, loose ball |
| Spokes | Sapim |
| Tires | [F] Maxxis Recon Race 27.5x2.6 WT, wire, TLR, EXO, tubeless, [R] Maxxis Recon Race 27.5x2.6 WT, wire, TLR, EXO, tubeless |
| Extras | Tubeless prepared, max tyre size 2.6", max chainring size 30t |
| Weight | The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality. |
