With the highest pedalling stiffness-to-weight ratio of any bike in its class and aero tube shaping, this frameset is engineered to give road racers superior climbing capabilities, aerodynamic efficiency and sprint stiffness for race-winning performance.
This is where the TCR’s most quantifiable gains can be found compared to previous generation models. Every tube shape was analysed, engineered and tested to create an overall structure with significantly lower drag at a wider range of yaw angles.
Integrated disc brakes deliver smooth, powerful stopping power and modulation for added control in variable weather and road conditions. Flat mounts and new thru-axles boost stiffness and improve overall handling, while added frame and fork clearance allows for larger diameter tyres up to 32mm.
| S | 165 cm - 175 cm |
| M | 171 cm - 181 cm |
| ML | 177 cm - 187 cm |
| L | 183 cm - 193 cm |
| XL | 189 cm - 199 cm |
| S | M | ML | L | XL | ||
|---|---|---|---|---|---|---|
| A | Seat Tube Length (mm) (inch) | 710 | 740 | 770 | 800 | 830 |
| B | Seat Tube Angle (degrees) | 74.0° | 73.5° | 73.0° | 73.0° | 72.5° |
| C | Top Tube Length (mm) (inch) | 535 | 550 | 565 | 580 | 600 |
| D | Head Tube Length (mm) (inch) | 130 | 145 | 165 | 185 | 200 |
| E | Head Tube Angle (degrees) | 72.3° | 73.0° | 73.0° | 73.0° | 73.0° |
| F | Fork Rake (mm) (inch) | 45 | 45 | 45 | 45 | 45 |
| G | Trail (mm) (inch) | 64 | 59.2 | 59.2 | 59.2 | 59.2 |
| H | Wheelbase (mm) (inch) | 977 | 980 | 991 | 1006 | 1020 |
| I | Chain Stay Length (mm) (inch) | 405 | 405 | 405 | 405 | 405 |
| J | Bottom Bracket Drop (mm) (inch) | 70 | 70 | 67 | 67 | 67 |
| K | Stack (mm) (inch) | 528 | 545 | 562 | 581 | 596 |
| L | Reach (mm) (inch) | 383 | 388 | 393 | 402 | 412 |
| M | Stand Over Height (mm) (inch) | 725 | 747 | 773 | 800 | 816 |
| O | Stem Length (mm) (inch) | 90 | 100 | 110 | 110 | 120 |
| P | Crank Length (mm) (inch) | 170 | 172.5 | 172.5 | 175 | 175 |
| Q | Wheel Size | 700C | 700C | 700C | 700C | 700C |
| Sizes | S, M, M/L, L, XL |
| Colours | Raw Carbon and Terracotta |

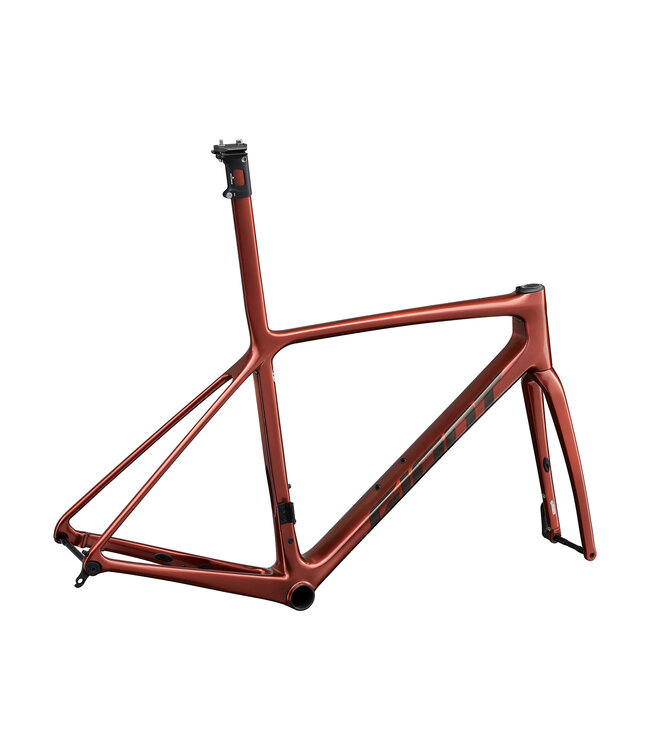

| Frame | Advanced SL-Grade Composite, integrated seatpost, disc |
| Fork | Advanced SL-Grade Composite, full-composite OverDrive 2 steerer, disc |
| Shock | N/A |
| Handlebar | N/A |
| Grips | N/A |
| Stem | N/A |
| Seatpost | Advanced SL-Grade composite, integrated design, -5/+15mm offset |
| Saddle | N/A |
| Pedals | N/A |
| Shifters | N/A |
| Front Derailleur | N/A |
| Rear Derailleur | N/A |
| Brakes | N/A |
| Brake Levers | N/A |
| Cassette | N/A |
| Chain | N/A |
| Crankset | N/A |
| Bottom Bracket | BB86 accepts press fit style BB only, bearing set not included |
| Rims | N/A |
| Hubs | N/A |
| Spokes | N/A |
| Tires | N/A |
| Extras | Front & rear 12mm thru-axles, 20mm & 45mm ISP clamps, RideSense ANT+/Bluetooth |
| Weight | The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality. |
