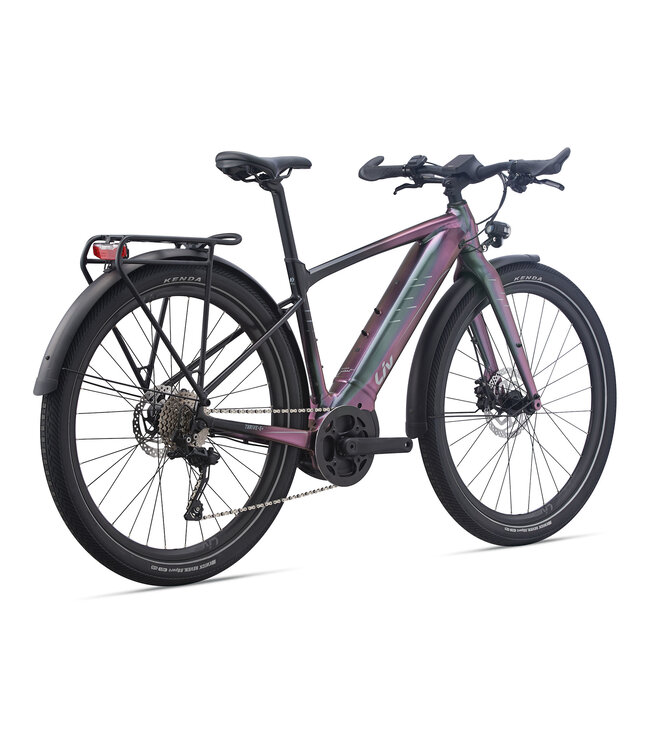

The perfect in-town E-bike designed specifically for commutes and errands, with front and rear lights, a kickstand, a rack, fenders and visible navigation on the RideDash Evo handlebar-mounted screen.
A combination of Smart Assist Technology, the reliable EnergyPak Smart Compact 500 battery, and 360% max support from the SyncDrive Pro motor bring you powerfully seamless riding, so you can enjoy your time going place to place or looking for adventure.
A frame designed with Liv’s women first design philosophy and E-bike friendly saddle and grips create a comfortable road riding experience in an appealing package.
| XS | 152 cm - 163 cm |
| S | 158 cm - 169 cm |
| M | 164 cm - 175 cm |
| L | 170 cm - 181 cm |
| XS | S | M | L | ||
|---|---|---|---|---|---|
| A | Seat Tube Length (mm) (inch) | 390 | 430 | 475 | 510 |
| B | Seat Tube Angle (degrees) | 74.0° | 74.0° | 74.0° | 74.0° |
| C | Top Tube Length (mm) (inch) | 560 | 565 | 570 | 580 |
| D | Head Tube Length (mm) (inch) | 105 | 110 | 120 | 140 |
| E | Head Tube Angle (degrees) | 70.5° | 70.5° | 71.5° | 71.5° |
| F | Fork Rake (mm) (inch) | 45 | 45 | 45 | 45 |
| G | Trail (mm) (inch) | 77.8 | 77.8 | 71.2 | 71.2 |
| H | Wheelbase (mm) (inch) | 1070 | 1075 | 1071 | 1082 |
| I | Chain Stay Length (mm) (inch) | 455 | 455 | 455 | 455 |
| J | Bottom Bracket Drop (mm) (inch) | 70 | 70 | 70 | 70 |
| K | Stack (mm) (inch) | 552 | 557 | 570 | 589 |
| L | Reach (mm) (inch) | 402 | 405 | 407 | 411 |
| M | Stand Over Height (mm) (inch) | 689 | 717 | 752 | 782 |
| O | Stem Length (mm) (inch) | 70 | 80 | 90 | 100 |
| P | Crank Length (mm) (inch) | 165 | 165 | 170 | 170 |
| Q | Wheel Size | 27.5" | 27.5" | 27.5" | 27.5" |
| Motor | SyncDrive Pro, 80Nm, Powered by Yamaha |
| Controller | RideControl Ergo |
| Display | RideDash Evo |
| Battery | EnergyPak Smart Compact 500Wh EnergyPak Plus range extender compatible |
| Sizes | XS, S, M, L |
| Colours | Echeveria/Black |
| Frame | ALUXX Aluminium |
| Fork | ALUXX Grade Aluminium, 12x100 thru-axle |
| Shock | - |
| Handlebar | Giant Connect XC Riser 31.8 x 690mm |
| Grips | Liv Connect Ergo+bar Microtech Plus, Lock-on |
| Stem | Giant Contact |
| Seatpost | Giant D-shape, Aluminium |
| Saddle | Liv Sport Pro E+ |
| Pedals | Aluminium Platform |
| Shifters | Shimano Tiagra |
| Front Derailleur | - |
| Rear Derailleur | Shimano GRX RX400, 10-speed |
| Brakes | Shimano BR-MT200, hydraulic disc, 180/160mm |
| Brake Levers | Shimano BL-MT201 |
| Cassette | Shimano Tiagra, 11-36T, 10-speed |
| Chain | KMC e.10 Sport |
| Crankset | Forged Alloy minimal Q-factor, 42T |
| Bottom Bracket | - |
| Rims | Giant eX-2, Tubeless Ready |
| Hubs | Giant Performance Tracker Road, Sealed Bearing |
| Spokes | Sapim E-Lite [r] Race [f] |
| Tires | Kenda Kwick Seven.5 27.5 x 2.40 (61-584), 60TPI, w/ reflex |
| Extras | - |
| Lighting | Axa BlueLine 50 frontAxa Blueline rear |
| Lock | - |
| Carrier | Giant Rack-It MIK |
| Weight | The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality. |
