Advanced-grade composite open triangle frame design makes shoulder carrying easy, while the V-shaped down tube efficiently sheds mud.

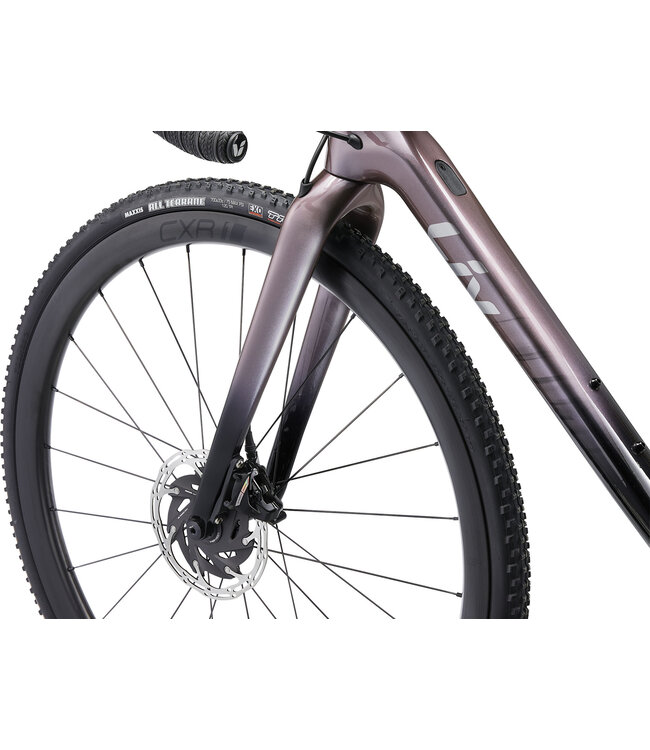

OverDrive 2 steerer combined with a D-Fuse seatpost offer a lightweight, responsive and agile ride with precise steering.
Tubeless set-up, 1x drivetrain and up to 45mm tyre clearance makes this lightweight race machine daring enough to take on any cyclocross course.
| XS | 152 cm - 163 cm |
| S | 158 cm - 169 cm |
| M | 164 cm - 176 cm |
| XS | S | M | ||
|---|---|---|---|---|
| A | Seat Tube Length (mm) (inch) | 490 | 505 | 520 |
| B | Seat Tube Angle (degrees) | 74.0° | 74.0° | 73.5° |
| C | Top Tube Length (mm) (inch) | 510 | 520 | 535 |
| D | Head Tube Length (mm) (inch) | 108 | 123 | 138 |
| E | Head Tube Angle (degrees) | 70.3° | 71.0° | 71.5° |
| F | Fork Rake (mm) (inch) | 50 | 50 | 50 |
| G | Trail (mm) (inch) | 72.9 | 68.3 | 65.1 |
| H | Wheelbase (mm) (inch) | 1004 | 1009 | 1014 |
| I | Chain Stay Length (mm) (inch) | 430 | 430 | 430 |
| J | Bottom Bracket Drop (mm) (inch) | 60 | 60 | 60 |
| K | Stack (mm) (inch) | 514 | 531 | 547 |
| L | Reach (mm) (inch) | 363 | 368 | 373 |
| M | Stand Over Height (mm) (inch) | 773 | 788 | 802 |
| O | Stem Length (mm) (inch) | 70 | 80 | 90 |
| P | Crank Length (mm) (inch) | 165 | 170 | 170 |
| Q | Wheel Size | 700C | 700C | 700C |
| Sizes | XS, S, M |
| Colours | Orion Nebula/Carbon/Chrome |
| Frame | Advanced-Grade Composite, 12mm thru-axle, disc |
| Fork | Advanced-Grade Composite, full-composite OverDrive 2 steerer, disc |
| Shock | N/A |
| Handlebar | Giant Contact SLR |
| Grips | Liv All Condition |
| Stem | Giant Contact SL |
| Seatpost | Giant D-Fuse SLR, composite, -5/+15mm offset |
| Saddle | Liv Approach SL |
| Pedals | N/A |
| Shifters | SRAM Force eTap AXS, 1x12 |
| Front Derailleur | N/A |
| Rear Derailleur | SRAM Force eTap AXS |
| Brakes | SRAM Force eTap AXS hydraulic, SRAM CenterLine rotors [F]160mm, [R]140mm |
| Brake Levers | SRAM Force eTap AXS hydraulic |
| Cassette | SRAM Force, 12-speed, 10x36 |
| Chain | SRAM Force D1 |
| Crankset | SRAM Force D1 DUB, 38t |
| Bottom Bracket | SRAM DUB, press fit |
| Rims | Giant CXR 1 Carbon Disc WheelSystem |
| Hubs | [F] Giant AR alloy, CenterLock, 12mm thru-axle, [R] Giant AR alloy, DT350 36t ratchet system, CenterLock, 12mm thru-axle |
| Spokes | Sapim CX-Ray |
| Tires | Maxxis All-Terrene, 700x33c, tubeless |
| Extras | Giant 1x chainguide, 45mm max tyre size |
| Weight | The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality. |
