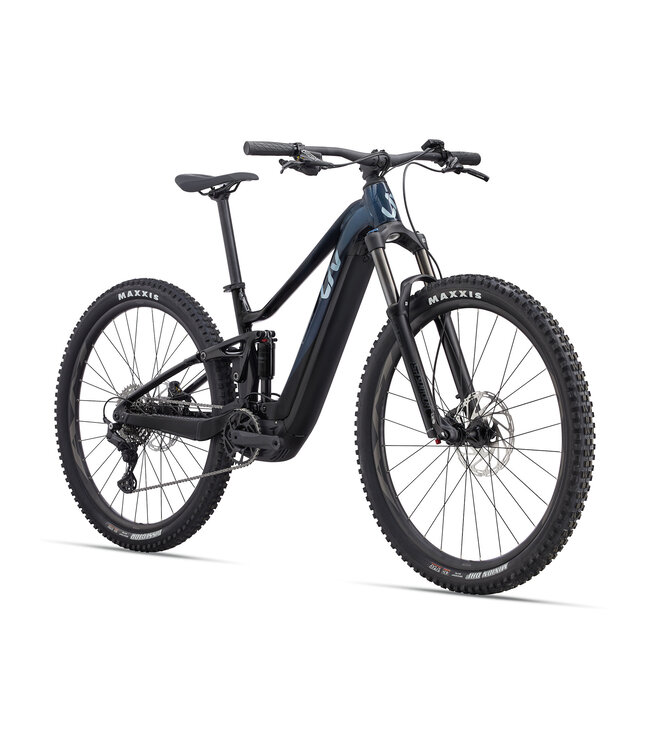

The high-performing Embolden E+ provides an exhilarating ride. It has a maximum range of 180km, loads of travel (140mm front, 125mm rear), and a powerful motor (75Nm of torque). Epic mountain biking, trekking, and touring adventures are now well within your capabilities.
The new SyncDrive Sport 2 motor with 75 Nm of torque and max 400% support and the EnergyPak Smart 625 battery offers the long possible range – the Embolden E+ delivers the power you need to explore new terrain.
This E-bike brings head-turning wow factor to the trails thanks to its internally routed cables, smooth and simple frame lines, and attractive color and graphics. Additionally, the lower standover height makes it easy to get on and off.
| XS | 150 cm - 163 cm |
| S | 155 cm - 172 cm |
| M | 164 cm - 175 cm |
| L | 170 cm - 181 cm |
| XS | S | M | L | ||
|---|---|---|---|---|---|
| A | Seat Tube Length (mm) (inch) | 380 | 395 | 425 | 455 |
| B | Seat Tube Angle (degrees) | 77.0° | 76.5° | 76.0° | 76.0° |
| C | Top Tube Length (mm) (inch) | 565 | 575 | 595 | 615 |
| D | Head Tube Length (mm) (inch) | 105 | 105 | 115 | 125 |
| E | Head Tube Angle (degrees) | 66.0° | 66.0° | 66.0° | 66.0° |
| F | Fork Rake (mm) (inch) | 44 | 44 | 44 | 44 |
| G | Trail (mm) (inch) | 121 | 121 | 121 | 121 |
| H | Wheelbase (mm) (inch) | 1201 | 1199 | 1215 | 1237 |
| I | Chain Stay Length (mm) (inch) | 468 | 468 | 468 | 468 |
| J | Bottom Bracket Drop (mm) (inch) | 20 | 40 | 40 | 40 |
| K | Stack (mm) (inch) | 601 | 621 | 630 | 639 |
| L | Reach (mm) (inch) | 426 | 425 | 437 | 455 |
| M | Stand Over Height (mm) (inch) | 690 | 710 | 735 | 760 |
| O | Stem Length (mm) (inch) | 40 | 40 | 50 | 60 |
| P | Crank Length (mm) (inch) | 165 | 165 | 165 | 165 |
| Q | Wheel Size | 27.5" | 29" | 29" | 29" |
| Motor | SyncDrive Sport 2, 75Nm, powered by Yamaha |
| Controller | RideControl Dash |
| Display | RideControl Dash, full colour LCD screen |
| Battery | EnergyPak Smart 625, EnergyPak Plus 250Wh range extender compatible |
| Sizes | XS: 27.5" / S, M, L: 29" |
| Colours | Cosmos Navy |
| Frame | ALUXX SL-Grade aluminium, 125mm travel FlexPoint suspension system, 12x148mm thru-axle, UDH hanger |
| Fork | SR Suntour XCR 34 LO-R, 140mm travel, tapered steerer, Lockout, 110x15 thru-axle |
| Shock | SR Suntour Raidon R, 190x45mm, custom tuned |
| Handlebar | Giant Connect TR Riser |
| Grips | Liv Tactal Pro Single Lock-On Grips |
| Stem | Giant Contact |
| Seatpost | Giant 30.9mm, 2-bolt Micro Adjustable, Forged Aluminium |
| Saddle | Liv sylvia E |
| Pedals | Platform |
| Shifters | Shimano Deore LinkGlide |
| Front Derailleur | MRP HD2 co-moulded chain guide |
| Rear Derailleur | Shimano Deore LinkGlide, 10-speed |
| Brakes | Tektro HD-M745 Orion, 4-piston, hydraulic disc, 203mm |
| Brake Levers | Tektro HD-M745 Orion |
| Cassette | Shimano CS-LG400-10, 11-43T, 10-speed LinkGlide |
| Chain | Shimano, LinkGlide, CN-LG500 |
| Crankset | FSA Comet E-Bike crank arm setFSA MegaTooth Direct-mount 1X steel 36T |
| Bottom Bracket | N/A |
| Rims | Giant AM 27.5" (XS), 29"(S, M, L) |
| Hubs | Giant eTracker Boost, [F] 110x15 [R] 148x12mm |
| Spokes | Stainless Steel |
| Tires | Maxxis Minion DHF 27x2.5"(XS), 29X2.50"(S, M, L) Foldable, TLR, EXO, 60TPI [F]Maxxis Dissector 27.5x2.4"(XS), 29X2.40"(S, M, L) Foldable WT, TLR, EXO, 60TPI [R] |
| Extras | - |
| Lighting | - |
| Lock | Torx 25 Battery Lock with built-in Torque limiter |
| Carrier | - |
| Weight | The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality. |
