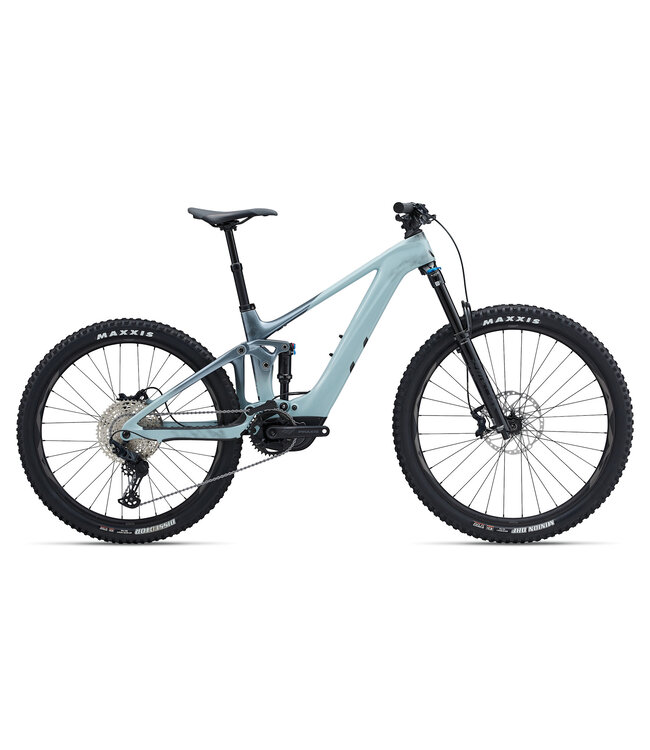

This full-suspension E-MTB, with its short chainstay and 140mm (rear)/150mm (front) travel, is engineered to create an ultra-light, efficient and responsive ride. Exceptional shock absorption is an added bonus on rock gardens.
A powerful 85Nm of torque delivered by the lightweight SyncDrive Pro 2 motor is smooth and instant, keeping you efficient and in control at all times. The ultra-slim, 400Wh battery hidden in the down tube minimizes weight and provides a perfect balance of efficiency and range.
From the integrated control unit to the sleek console on the top tube and the internal cable routing, every design element embodies a high-end, modern look. It combines leading-edge E-MTB design with a user-friendly experience.
| XS | 152 cm - 163 cm |
| S | 158 cm - 169 cm |
| M | 164 cm - 175 cm |
| L | 170 cm - 181 cm |
| Motor | SyncDrive Pro2 85Nm, powered by Yamaha |
| Controller | RideControl Ergo 3, grip integrated |
| Display | RideControl GO, frame integrated LED display ANT+ Wireless display compatible |
| Battery | EnergyPak Smart 400Wh EnergyPak Plus, range extender compatible |
| Sizes | XS, S, M, L |
| Colours | Soap Suds/Aged Denim |
| Frame | Advanced-grade composite frame, Advanced-grade rear triangle, Advanced forged composite upper rocker, 140mm Maestro suspension systemMX (front 29", rear 27.5") |
| Fork | Fox 36 Float Performance, 150mm travel, 44mm offset, Grip Damper, Boost 110x15QR, e-bike optimised |
| Shock | Fox Float Performance, EVOL Large Volume sleeve, 2pos, 185x52.5mm Trunnion mount, custom tuned |
| Handlebar | Giant Contact 35 Trail |
| Grips | Liv Tactal Pro-E Single Lock-On Grips |
| Stem | Giant Contact SL 35 |
| Seatpost | Giant Contact Switch, dropper |
| Saddle | Liv Sylvia E+ |
| Pedals | N/A |
| Shifters | Shimano SLX |
| Front Derailleur | MRP HD2 co-moulded chain guide |
| Rear Derailleur | Shimano Deore SLX, 12-speed, Shadow+ |
| Brakes | Shimano SLX BR-M7120, 4-piston, hydraulic disc, 203mm |
| Brake Levers | Shimano Deore SLX, I-spec EV |
| Cassette | Shimano CS-M6100-12, 10-51T, 12-speed |
| Chain | KMC e.12 Turbo, EcoProteq, e-bike optimized |
| Crankset | Praxis Wavetm 36T Cold Forged 4130 premium steel Praxis e-Cadet+ custom forged crankarm set |
| Bottom Bracket | N/A |
| Rims | Giant AM, alloy 29"[F], 27.5" [R] |
| Hubs | Shimano MT410 Boost, Center-Lock, [F] 110x15 [R] 148x12mm Micro-Spline Drive Body Thru-axle |
| Spokes | Sapim E-Lite [R] Race [F], e-bike optimized |
| Tires | Maxxis Minion DHF 29X2.50" Foldable, TLR, EXO [F]Maxxis Dissector 27.5x2.4" Foldable, TLR, EXO [R] |
| Extras | Tubeless kit (liquid, valves, levers) |
| Weight | The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality. |
