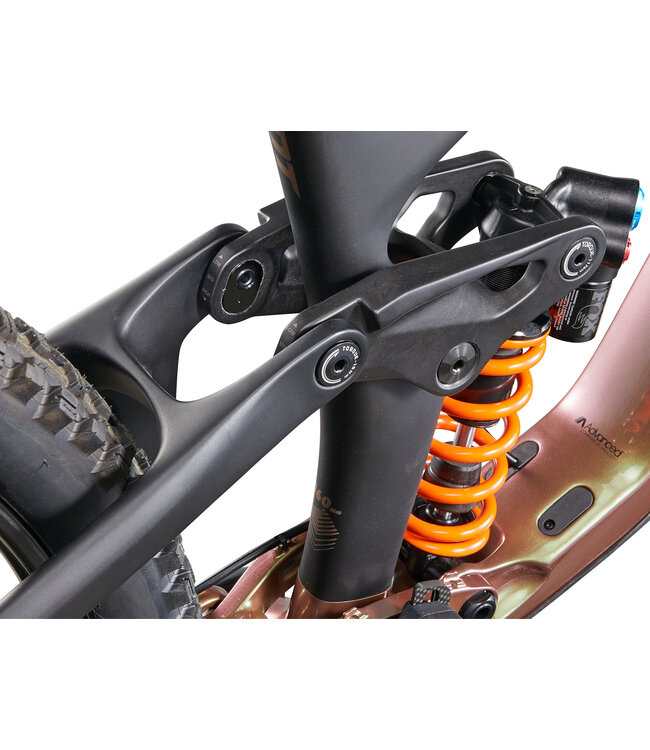

A new Maestro rear suspension system with longer travel (160mm) was developed and tested under the extreme conditions of Enduro World Series races. The trunnion mount shock has a longer stroke (62.5mm compared to 60mm on the previous generation). And the Advanced Forged Composite upper rocker arm adds stiffness and lowers overall weight.
New flip chip technology lets you switch between three settings depending on the terrain. You can select a 63.5, 63.9 or 64.2-degree head angle and corresponding 78.3, 78.7 or 79-degree seat tube angle, resulting in a 35, 30 or 25mm bottom bracket drop (size medium) to fine-tune handling for trail conditions, riding style and rear-wheel size.
Riders can choose either a 29- or 27.5-inch rear wheel, paired with a 29-inch front wheel. The larger 29-inch option improves stability and roll-over capabilities, while the 27.5 option delivers a more agile, snappier feel. It’s a quick and easy change to adjust the bike’s handling and feel.
| S | 163 cm - 172 cm |
| M | 171 cm - 180 cm |
| L | 179 cm - 188 cm |
| XL | 187 cm - 198 cm |
| Sizes | S, M, L, XL |
| Colours | Gloss Messier/Matte Carbon |
| Frame | Advanced-Grade Composite front and rear triangles, 160mm Maestro suspension, flip chip, 12x148mm thru-axle, 27.5 or 29-inch rear wheel compatible, flip chip - Maestro 3, integrated downtube storage, 55mm Chainline |
| Fork | Fox 38 Factory, 170mm, GRIP 2 damper, 15x110 Kabolt X, 44mm offset, custom tuned for Giant |
| Shock | Fox DHX2 Factory, coil, 205/62.5, custom tuned for Giant S:425#, M:425#, L:450#, XL: 475# |
| Handlebar | Giant Contact SLR TR35, composite, 20mm rise |
| Grips | Giant Tactal Pro Single |
| Stem | Giant Contact SL 35 S:40mm, M:40mm, L:40mm, XL:40mm |
| Seatpost | TranzX travel-adjustable dropper, remote |
| Saddle | Giant Romero SL |
| Pedals | N/A |
| Shifters | SRAM Eagle AXS Rocker Paddle, 1x12 |
| Front Derailleur | N/A |
| Rear Derailleur | SRAM XX1 Eagle AXS |
| Brakes | Shimano XTR M-9120, hydraulic, Shimano RT-66 rotors [F]220mm, [R]200mm |
| Brake Levers | Shimano XTR BL-M9120 |
| Cassette | SRAM X01 Eagle, 10x52 |
| Chain | SRAM X01 Eagle |
| Crankset | SRAM XX1 Eagle, 34t, 55mm chainline S:165mm, M:170mm, L:170mm, XL:170mm |
| Bottom Bracket | SRAM DUB, press fit |
| Rims | Zipp 3ZERO MOTO 29 Carbon (*Quarq TyreWiz not included) |
| Hubs | Zipp 3ZERO MOTO ZM2 |
| Spokes | ZIPP 3ZERO MOTO |
| Tires | [F] Maxxis Assegai 29x2.5 WT, 3C MaxxTerra, EXO+, TR [R] Maxxis Minion DHR II 29x2.4 WT, 3C MaxxTerra, DD, TR tubeless |
| Extras | Tubeless prepared, 2.5" max tyre size, 36t max chainring size, MRP AMG chain guide, 3M tailgate protector |
| Weight | The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality. |
