New flip chip feature lets you change the head tube and seat tube angles, as well as the bottom bracket height, to fine-tune handling for varying trail conditions and individual riding style.
Larger 29-inch diameter wheels optimised to roll over rough terrain with balance and stability, giving you the momentum to tackle technical climbs and the confidence to fly on fast, rugged singletrack descents.
Lightweight composite frameset features a longer reach and steeper seat tube angle for aggressive trail riding and improved climbing capabilities. Maestro rear suspension features 120mm of rear wheel travel paired with a 130mm fork up front. The frame also includes a cleanly integrated storage space in the down tube for tools, snacks or other essentials.
| S | 163 cm - 172 cm |
| M | 171 cm - 180 cm |
| L | 179 cm - 188 cm |
| XL | 187 cm - 198 cm |
| Sizes | S, M, L, XL |
| Colours | Gloss Cordovan/Matte Cordovan/Chrome |
| Frame | Advanced-Grade Composite front and rear triangles, 120mm Maestro suspension, flip chip - Maestro, 12x148mm thru-axle, integrated downtube storage |

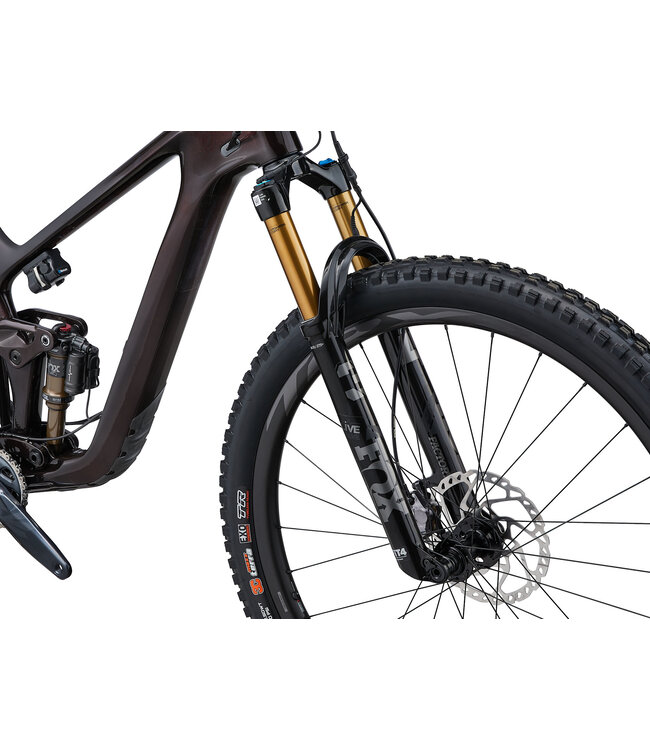

| Fork | Fox 34 Factory Live Valve, 130mm, FIT4 damper, Boost 15x110 Kabolt, 44mm offset, custom tuned for Giant |
| Shock | Fox Factory Live Valve, custom tuned for Giant |
| Handlebar | Giant Contact SLR TR35 |
| Grips | Giant Tactal Pro Single lock-on |
| Stem | Giant Contact SL 35 S:40mm, M:40mm, L:50mm, XL:50mm |
| Seatpost | TranzX travel-adjustable dropper, remote S: 120-150mm travel / 30.9 x 459mm, M: 140-170mm travel / 30.9 x 499mm, L: 170-200mm travel / 30.9 x 525mm, XL: 170-200mm travel / 30.9 x 525mm |
| Saddle | Giant Romero SL |
| Pedals | N/A |
| Shifters | SRAM GX Eagle, 1x12 |
| Front Derailleur | N/A |
| Rear Derailleur | SRAM GX Eagle |
| Brakes | Shimano Deore XT BR-M8120, hydraulic, Shimano RT-66 rotors [F]180mm, [R]180mm |
| Brake Levers | Shimano Deore XT BL-M8100 |
| Cassette | SRAM GX, 10x52 |
| Chain | SRAM GX |
| Crankset | SRAM GX, 30t, 55mm chainline |
| Bottom Bracket | SRAM DUB, press fit |
| Rims | Giant TRX 2 29 Carbon WheelSystem |
| Hubs | [F] : Giant MTB alloy, 6-bolt [R] Giant MTB alloy, 3-pawl driver, 6-bolt |
| Spokes | Sapim |
| Tires | [F] Maxxis Minion DHF 29x2.5 WT, 3C MaxxTerra, EXO, TR [R] Maxxis Aggressor 29x2.5, EXO, TR, tubeless |
| Extras | Tubeless prepared, 2.6" max tyre size, 34t max chainring size |
| Weight | The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality. |
