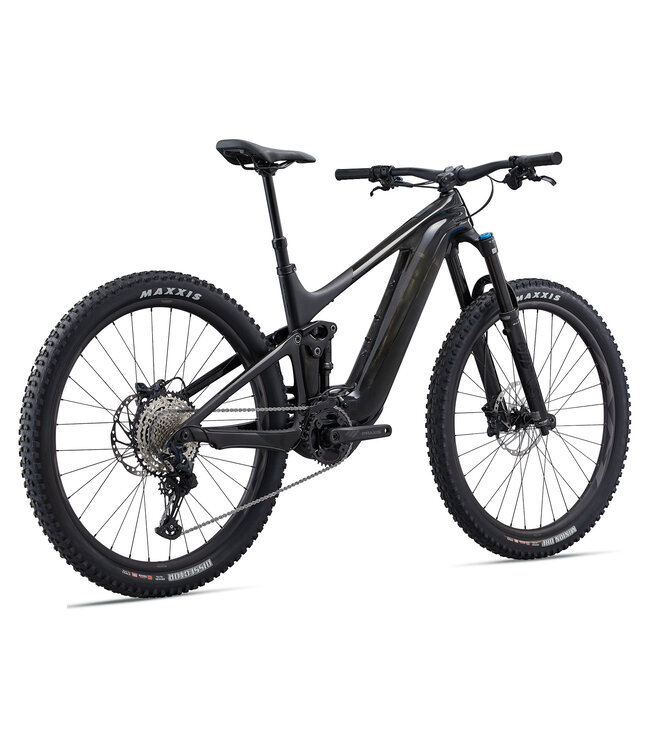

SyncDrive Pro motor with 85Nm of torque creates powerful pedalling assistance even at low speeds. Lightweight, stiff Advanced-grade composite frame with 140mm of Maestro rear suspension travel and 150mm up front delivers confident handling and control on rough trails.
Flip chip feature lets you change the head tube and seat tube angles, along with the bottom bracket height, to fine-tune handling for varying trail conditions and individual riding style. You can choose the low position for fast, aggressive terrain, or high for a more XC-oriented rider position.
RideControl Go top tube integrated multi-function on/off button and RideControl Ergo 3 handlebar-mounted remote, which can be mounted on either grip, offer user-friendly controls and an uncluttered cockpit design.
| S | 163 cm - 174 cm |
| M | 171 cm - 182 cm |
| L | 179 cm - 190 cm |
| XL | 187 cm - 198 cm |
| Motor | Giant SyncDrive Pro2 85Nm, PedalPlus 6-Sensor technology |
| Controller | RideControl Ergo 3, grip integrated |
| Display | "RideControl GO, frame integrated LED display ANT+ Wireless display compatible" |
| Battery | Giant EnergyPak 800Wh, 22700 Lithium cell technology, Aluminium casing with highest safety standard (EN50604), CO2 Neutral production Giant EnergyPak Plus 250 range extender compatible |
| Charger | Giant EnergyPak 6A smart charger, 60% in 2:15h |
| Connectivity | Giant RideControl App enabled ANT+ wireless display signal with e-bike profile |
| Sizes | S, M, L, XL |
| Colours | Carbon Smoke |
| Frame | Advanced-grade composite frame, Advanced-grade rear triangle, Advanced forged composite upper rocker, 140mm Maestro suspension system, 'Boost' 148x12 UDH rear axle, Giant EnergyPak Plus Range Extender Compatible |
| Fork | Fox 36 Float Performance E-Tuned, 29er, 150mm travel, 44mm offset, Grip 3-position Micro Adjust damper, Kabolt-X 110 |
| Shock | Fox DPS Performance, EVOL Large Volume sleeve, 3-position Lever, 185x52.5mm Trunnion mount, custom tuned, recommended sag: 30% |
| Handlebar | Giant Contact 35 Trail |
| Grips | Giant Tactal Pro-E, tapered design, 135mm Ø28~30mm (S/M) 142mm Ø29~32mm (L/XL) |
| Stem | Giant Contact SL 35 |
| Seatpost | Giant Contact Switch, dropper |
| Saddle | Giant Romero, Neutral |
| Pedals | Flatpedal |
| Shifters | Shimano Deore SLX |
| Front Derailleur | MRP HD2 co-moulded chain guide |
| Rear Derailleur | Shimano Deore SLX, 12-speed, Shadow+ |
| Brakes | Shimano SLX, BR-M7120, 4-piston, hydraulic disc, 203mm |
| Brake Levers | Shimano SLX, I-spec EV |
| Cassette | Shimano CS-M6100, 10-51T, 12-speed |
| Chain | KMC e.12 Sport, NP/NP, e-bike optimized |
| Crankset | Praxis Wavetm 36T Cold Forged 4130 premium steel Praxis e-Cadet+ custom forged crankarm set |
| Bottom Bracket | N/A |
| Rims | Giant AM 29" |
| Hubs | Shimano MT410, Boost, Center-Lock, [F] 110x15 [R] 148x12mm Micro-Spline Drive Body Thru-axle |
| Spokes | Sapim E-Lite [R] Race [F], e-bike optimized |
| Tires | Maxxis Minion DHF 29x2.6" foldable, Tubeless, EXO+, 3C MaxxTerra [F]Maxxis Dissector 29x2.6" Foldable, Tubeless, EXO+, 3C MaxxTerra [R] |
| Extras | Tubeless kit (liquid, valves, levers) |
| Lighting | Optional:- Giant Recon series e-bike lights available and direct connectable |
| Lock | Torx 25 Battery Lock with built-in Torque limiter |
| Weight | The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality. |
