New EnergyPak 400 battery is designed to be ultra slim. You get all the power but in a smaller package that’s cleanly integrated with the composite frameset.
RideControl Ergo 3 remote attaches to the all-new composite Giant Contact SLR integrated handlebar. The control can be mounted to either side of the handlebar so you can customize your controls for a clean, uncluttered cockpit.
New SyncDrive Pro motor, co-developed with Yamaha, puts out a powerful 85Nm of torque and weighs just 2.7kg. The result is quicker acceleration and climbing capabilities on technical trails.
| S | 163 cm - 174 cm |
| M | 171 cm - 182 cm |
| L | 176 cm - 186 cm |
| XL | 183 cm - 193 cm |
| Motor | SyncDrive Pro2 85Nm, powered by Yamaha |
| Controller | Giant RideControl Ergo3, grip integrated remote |
| Display | RideControl GO, frame integrated LED display ANT+ Wireless display compatible |
| Battery | EnergyPak Smart 400Wh EnergyPak Plus, range extender compatible |
| Charger | Giant EnergyPak 4A smart charger, 60% in 1:45 |
| Connectivity | Giant RideControl App enabled ANT+ wireless display signal with e-bike profile |
| Sizes | S, M, L, XL |
| Colours | Mirage/Black |

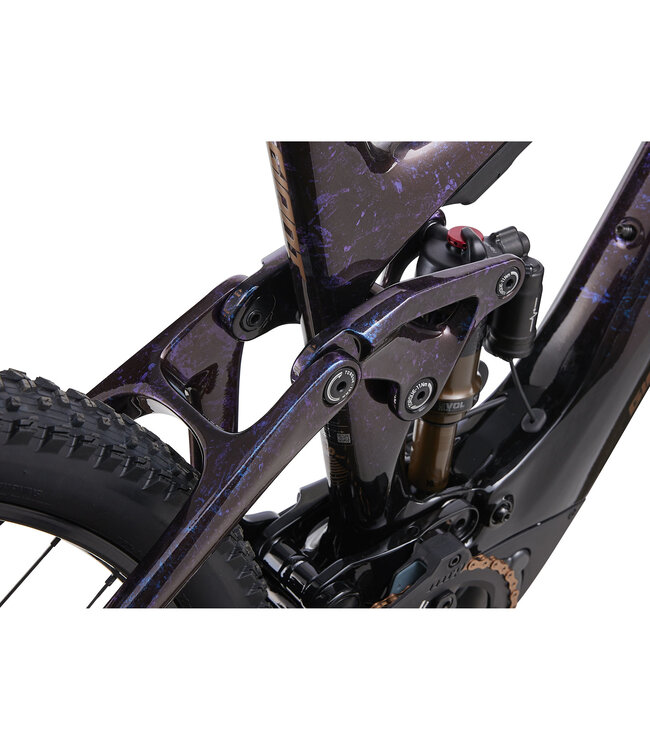

| Frame | Advanced-grade composite frame, Advanced-grade rear triangle, Advanced forged composite upper rocker, 140mm Maestro suspension system |
| Fork | Fox 36 Factory E-Tuned, 29er, 150mm travel, 44mm offset, Grip2 VVC damper, Kabolt-X 110 |
| Shock | Fox Float X Factory, EVOL, 185x52.5mm Trunnion mount, custom tuned, recommended sag: 30% |
| Handlebar | Giant Contact SLR Trail, carbon |
| Grips | Giant Tactal Pro-E, tapered design, 135mm Ø28~30mm (S/M) 142mm Ø29~32mm (L/XL) |
| Stem | Giant Contact SLR Trail |
| Seatpost | Fox Transfer Factory |
| Saddle | Giant Romero SL, Neutral |
| Pedals | N/A |
| Shifters | SRAM AXS Rocker Paddle, wireless electronic shifting |
| Front Derailleur | MRP HD2 co-moulded chain guide |
| Rear Derailleur | SRAM XO1 Eagle AXS |
| Brakes | SRAM Code RSC, 4-piston, hydraulic disc, 200mm[F], 180mm[R] |
| Brake Levers | SRAM Code RSC |
| Cassette | SRAM XG-1299, 10-52T, 12-speed |
| Chain | SRAM XX1 Eagle Powerlink |
| Crankset | Praxis Performance Carbon e-crank arms. SRAM X-SYNC Eagle 36T chain ring |
| Bottom Bracket | N/A |
| Rims | Zipp 3Zero MOTO 29" [F],27.5" [R], Carbon (*Quarq TyreWiz not included) |
| Hubs | Zipp 3MOTO ZM2 |
| Spokes | Zipp 3MOTO |
| Tires | Maxxis Dissector 29X2.40" Foldable, TLR, EXO [F]Maxxis Rekon 27.5x2.4" Foldable, TLR, EXO+ [R] |
| Extras | Tubeless kit (liquid, valves, levers) |
| Lighting | Optional:- Giant Recon series e-bike lights available and direct connectable |
| Carrier | - |
| Weight | The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality. |
