Advanced composite frameset is 241g lighter than previous generation. The bottom bracket area is stiffer for faster acceleration, and a steeper seat tube puts the rider in an efficient climbing position.
FlexPoint Pro suspension delivers 100mm of smooth, active rear travel. The frameset features modern XC geometry including a slacker 67.5-degree head tube and 110mm suspension fork for technical descents.
Frame geometry and suspension are optimised for fast and stable 29-inch wheels. A longer reach and modified cockpit including a 35mm composite handlebar and alloy stem further boost balance and stability on XC terrain.
| S | 163 cm - 172 cm |
| M | 171 cm - 180 cm |
| L | 179 cm - 188 cm |
| XL | 187 cm - 198 cm |
| S | M | L | XL | ||
|---|---|---|---|---|---|
| A | Seat Tube Length (mm) (inch) | 390 | 420 | 465 | 495 |
| A1 | Seat Post Insertion Depth (mm) (inch) | 185 | 225 | 260 | 290 |
| B | Seat Tube Angle (degrees) | 75.5° | 75.5° | 75.5° | 75.5° |
| C | Top Tube Length (mm) (inch) | 572 | 604 | 626 | 653 |
| D | Head Tube Length (mm) (inch) | 90 | 95 | 105 | 115 |
| E | Head Tube Angle (degrees) | 67.5° | 67.5° | 67.5° | 67.5° |
| F | Fork Rake (mm) (inch) | 44 | 44 | 44 | 44 |
| G | Trail (mm) (inch) | 109 | 109 | 109 | 109 |
| H | Wheelbase (mm) (inch) | 1127 | 1159 | 1183 | 1212 |
| I | Chain Stay Length (mm) (inch) | 435 | 435 | 435 | 435 |
| J | Bottom Bracket Drop (mm) (inch) | 42 | 42 | 42 | 42 |
| K | Stack (mm) (inch) | 589 | 593 | 603 | 612 |
| L | Reach (mm) (inch) | 420 | 450 | 470 | 495 |
| M | Stand Over Height (mm) (inch) | 745 | 750 | 777 | 800 |
| O | Stem Length (mm) (inch) | 60 | 70 | 70 | 70 |
| P | Crank Length (mm) (inch) | 170 | 175 | 175 | 175 |
| Q | Wheel Size | 29" | 29" | 29" | 29" |
| Sizes | S, M, L, XL |
| Colours | Golden Haze/Chrome |
| Frame | Advanced-Grade Composite front and rear triangles, 100mm FlexPoint Pro suspension, UDH hanger, 12x148mm thru-axle, 55mm Chainline |
| Fork | Fox 34 Float SC Performance Remote, 110mm, FIT4 damper, Boost 15x110 Kabolt, 44mm offset, remote lockout, custom tuned for Giant |
| Shock | Fox Float SL Performance Elite, 3 position lockout, custom tuned for Giant |

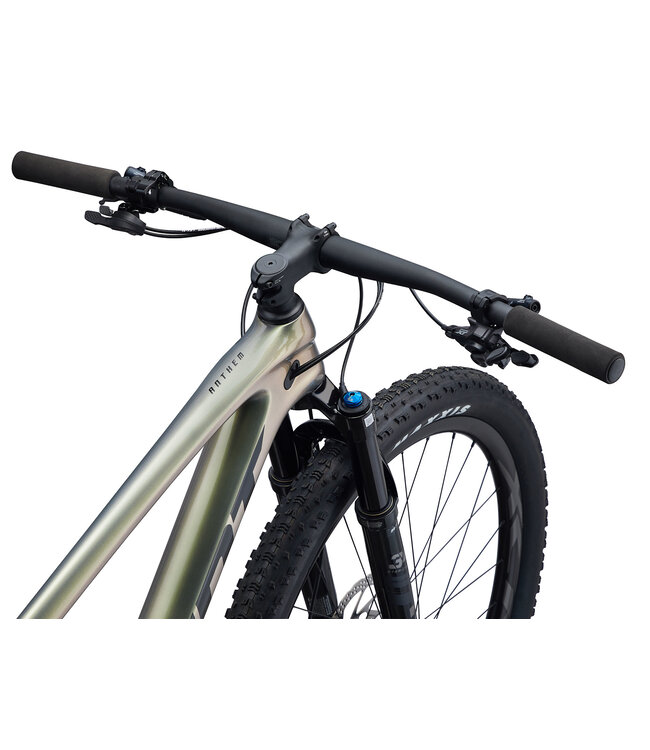

| Handlebar | Giant Contact XC Flat, alloy, 35mm |
| Grips | Giant XC Pro |
| Stem | Giant Contact SL XC, 35mm S:60mm, M:70mm, L:70mm, XL:70mm |
| Seatpost | Giant Contact Switch dropper, adjustable travel, remote |
| Saddle | Fi'zi:k Antares R7 with S-alloy rails |
| Pedals | N/A |
| Shifters | Shimano Deore XT SL-M8100, 1x12 |
| Front Derailleur | N/A |
| Rear Derailleur | Shimano Deore XT M8100, Shadow+ |
| Brakes | Shimano SLX BR-M7100, hydraulic, Shimano RT-56 rotors [F]180mm, [R]160mm |
| Brake Levers | Shimano Deore BL-M7100 |
| Cassette | Shimano SLX M7100, 10x51 |
| Chain | KMC X-12 |
| Crankset | Shimano SLX, 32t S:170mm, M:175mm, L:175mm, XL:175mm, 55mm chainline |
| Bottom Bracket | Shimano, press fit |
| Rims | Giant XCR 2 29 Carbon WheelSystem |
| Hubs | [F] Giant MTB alloy, 6-bolt, [R] Giant MTB alloy, 3-pawl driver, 6-bolt |
| Spokes | Sapim |
| Tires | Maxxis Aspen 29x2.4, foldable, 120tpi, TLR, EXO, tubeless |
| Extras | Tubeless prepared, 2.4" max tyre size, 34t max chainring size, Giant/MRP CS chain guide |
| Weight | The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality. |
