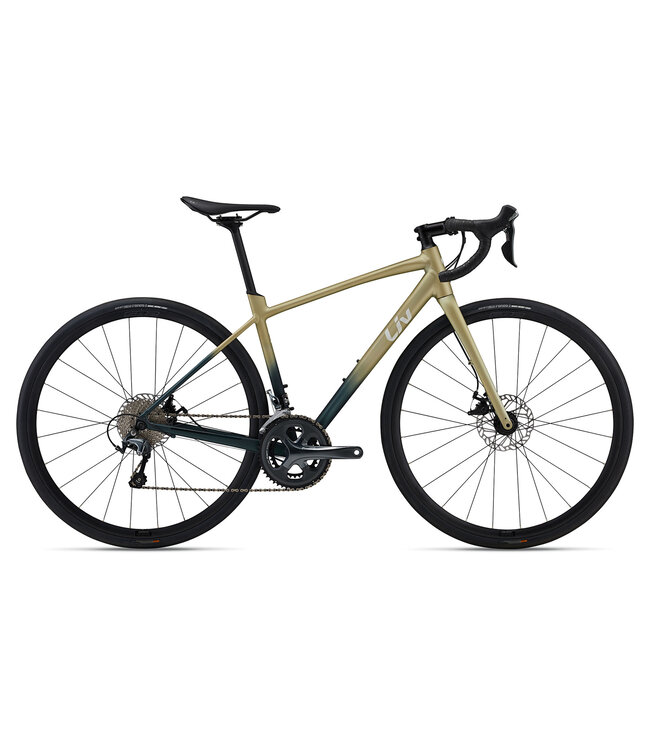

The lightweight ALUXX frame features the latest endurance geometry with an Advanced-grade composite fork and D-Fuse seatpost to diminish vibrations.
The 32c tyres provide stability both on-road and off-road, and select models offer compatibility with tubeless tyres up to 38c. With the OverDrive steerer and powerful disc brakes, you'll enjoy precise handling and reliable stopping power for confident riding.
Equipped with frame mounts for racks and fenders, the Avail AR ensures you're ready for longer journeys with all the necessary gear and protection.
| XS | 153 cm - 162 cm |
| S | 158 cm - 169 cm |
| M | 165 cm - 174 cm |
| L | 171 cm - 182 cm |
| XS | S | M | L | ||
|---|---|---|---|---|---|
| A | Seat Tube Length (mm) (inch) | 410 | 445 | 480 | 515 |
| B | Seat Tube Angle (degrees) | 74.5° | 74.5° | 74.0° | 74.0° |
| C | Top Tube Length (mm) (inch) | 515 | 525 | 540 | 555 |
| D | Head Tube Length (mm) (inch) | 118 | 138 | 158 | 178 |
| E | Head Tube Angle (degrees) | 70.5° | 71.5° | 72.0° | 72.0° |
| F | Fork Rake (mm) (inch) | 53 | 53 | 53 | 53 |
| G | Trail (mm) (inch) | 69.5 | 62.9 | 59.6 | 59.6 |
| H | Wheelbase (mm) (inch) | 999 | 1001 | 1006 | 1022 |
| I | Chain Stay Length (mm) (inch) | 422 | 422 | 422 | 422 |
| J | Bottom Bracket Drop (mm) (inch) | 80 | 80 | 80 | 80 |
| K | Stack (mm) (inch) | 538 | 561 | 582 | 601 |
| L | Reach (mm) (inch) | 366 | 369 | 373 | 383 |
| M | Stand Over Height (mm) (inch) | 681 | 709 | 736 | 766 |
| O | Stem Length (mm) (inch) | 70 | 80 | 90 | 90 |
| P | Crank Length (mm) (inch) | 165 | 170 | 170 | 172.5 |
| Q | Wheel Size | 700C | 700C | 700C | 700C |
| Sizes | XS, S, M, L |
| Colours | Bay Leaf |
| Frame | ALUXX-Grade aluminium, 12x142mm thru-axle, disc |
| Fork | Advanced-grade composite, full-composite OverDrive steerer, 12x100mm, disc |
| Shock | N/A |
| Handlebar | Liv Connect, 31.8mm XS:38cm, S:40cm, M:40cm, L:42cm |
| Grips | Liv All Condition |
| Stem | Giant Sport XS:70mm, S:80mm, M:90mm, L:90 |
| Seatpost | Giant D-Fuse, composite |
| Saddle | Liv Approach |
| Pedals | N/A |
| Shifters | Shimano Tiagra |
| Front Derailleur | Shimano Tiagra |
| Rear Derailleur | Shimano Tiagra GS |
| Brakes | Tektro MD-C550 mechanical, Giant MPH Rotors [F]160mm, [R]160mm |
| Brake Levers | Shimano Tiagra |
| Cassette | Shimano Tiagra, 10-speed, 11x34 |
| Chain | KMC X10-1 |
| Crankset | Shimano Tiagra, 34/50 XS:165mm, S:170mm, M:170mm, L:172.5mm |
| Bottom Bracket | Cartridge |
| Rims | Giant S-R2 Disc wheelset |
| Hubs | Giant alloy, 12mm thru-axle |
| Spokes | Sapim |
| Tires | Giant Gavia Fondo 2, 700x32c, tubeless |
| Extras | Tubeless prepared, 38mm max tyre size |
| Weight | The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality. |
