Balanced geometry with a 75-degree seat tube angle puts the rider in a powerful pedalling position on climbs, while a slacker 66-degree head angle boosts confidence and control on technical descents.

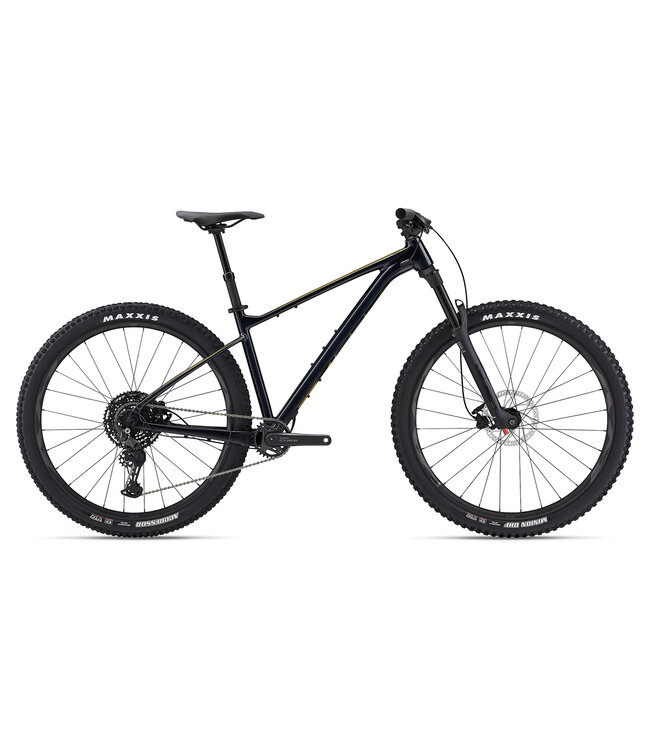

Lightweight ALUXX SL aluminium hardtail frame offers agile acceleration and manoeuvrability to help riders climb, corner and hammer the flats with efficiency and speed.
Giant Crest 34 suspension fork with 130mm of travel absorbs roots, rocks and ruts. Grippy, high-volume tyres boost traction on rugged terrain. And a dropper seatpost with handlebar remote lets you adjust saddle height on the fly for confident positioning.
| S | 163 cm - 172 cm |
| M | 171 cm - 180 cm |
| L | 179 cm - 188 cm |
| XL | 187 cm - 198 cm |
| S | M | L | XL | ||
|---|---|---|---|---|---|
| A | Seat Tube Length (mm) (inch) | 380 | 430 | 465 | 495 |
| A1 | Seat Post Insertion Depth (mm) (inch) | 300 | 200 | 235 | 285 |
| B | Seat Tube Angle (degrees) | 75.0° | 75.0° | 75.0° | 75.0° |
| C | Top Tube Length (mm) (inch) | 592 | 612 | 639 | 662 |
| D | Head Tube Length (mm) (inch) | 95 | 95 | 105 | 115 |
| E | Head Tube Angle (degrees) | 66.0° | 66.0° | 66.0° | 66.0° |
| F | Fork Rake (mm) (inch) | 44 | 44 | 44 | 44 |
| G | Trail (mm) (inch) | 122 | 122 | 122 | 122 |
| H | Wheelbase (mm) (inch) | 1157 | 1177 | 1206 | 1230 |
| I | Chain Stay Length (mm) (inch) | 438 | 438 | 438 | 438 |
| J | Bottom Bracket Drop (mm) (inch) | 60 | 60 | 60 | 60 |
| K | Stack (mm) (inch) | 622 | 622 | 631 | 640 |
| L | Reach (mm) (inch) | 425 | 445 | 470 | 490 |
| M | Stand Over Height (mm) (inch) | 727 | 746 | 764 | 791 |
| O | Stem Length (mm) (inch) | 40 | 40 | 50 | 50 |
| P | Crank Length (mm) (inch) | 165 | 170 | 170 | 170 |
| Q | Wheel Size | 29" | 29" | 29" | 29" |
| Sizes | S, M, L, XL |
| Colours | Pyrite Brown, Cold Night |
| Frame | ALUXX SL-grade aluminium, 12x148mm thru-axle |
| Fork | Giant Crest 34 RCL, 130mm, 44mm offset, Boost 15x110 |
| Shock | N/A |
| Handlebar | Giant Connect, 31.8mm |
| Grips | Giant Sole-O |
| Stem | Giant Contact, 31.8mm, S:40mm, M:40mm, L:50mm, XL:50mm |
| Seatpost | Giant Contact Switch dropper, remote S: 125mm travel / 30.9 x 395mm M: 125mm travel / 30.9 x 395mm L: 150mm travel / 30.9 x 440mm XL: 170mm travel / 30.9 x 455mm |
| Saddle | Giant Romero |
| Pedals | N/A |
| Shifters | Shimano CUES SL-6000-10R, 1x10 |
| Front Derailleur | N/A |
| Rear Derailleur | Shimano CUES, U6000, Shadow+ |
| Brakes | Tektro HDM 275, hydraulic, Tektro rotors [F]180mm, [R]180mm |
| Brake Levers | Tektro HDM 275 |
| Cassette | Shimano CUES, CS-LG300, 11x48 |
| Chain | Shimano CUES LG500 |
| Crankset | Shimano CUES FC-U6000-1, 30t S:170mm, M:170mm, L:170mm, XL:170mm |
| Bottom Bracket | Shimano, threaded |
| Rims | Giant AM 29, tubeless ready sleeve-joint rim, 30mm inner width |
| Hubs | Alloy, sealed |
| Spokes | Stainless |
| Tires | [F] Maxxis Minion DHF, 29x2.5 WT, EXO/TR[R] Maxxis Aggressor, 29x2.5 WT, foldable, EXO/T |
| Extras | Tubeless prepared, 2.5" max tyre size, 32t max chainring size |
| Weight | The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality. |
