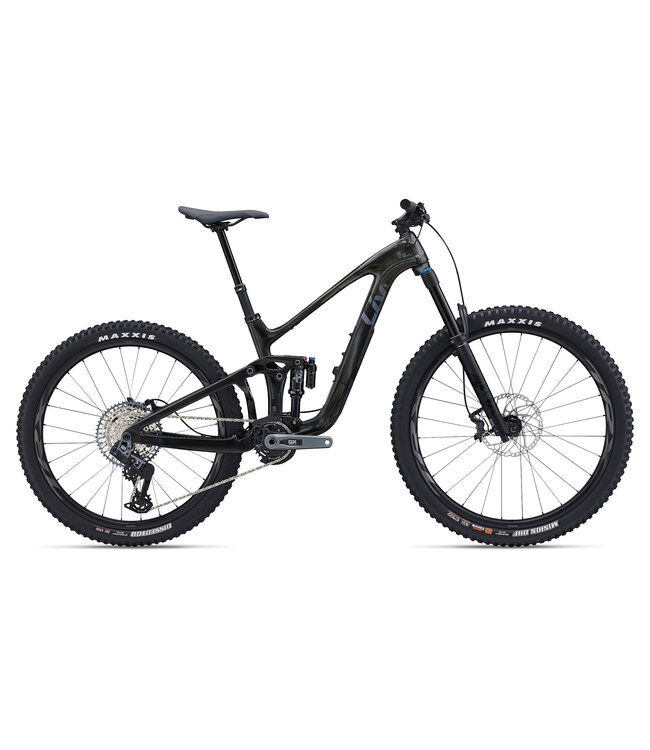

Lightweight Advanced-Grade Composite frameset with integrated down tube storage features a slacker head tube angle for confidence on technical terrain and a longer reach to keep you centred and in control in the corners. The 150mm of Maestro rear wheel suspension has been custom tuned by women who shred, for women who shred. And paired with 160mm of front suspension, you’ve got a bike that is equal parts agile and burly.
All-new flip chip – Maestro 3 offers more adjustability allowing you to easily change the head tube and seat tube angles, bottom bracket height and rear wheel size* to fine-tune handling for varying trail conditions and your personal riding style. *Sizes M and L only
Frame sizes XS and S are solely designed for a MX configuration – 29-inch wheel up front and 27.5-inch wheel in the rear. This set up optimizes rear wheel travel, provides a playful and nimble rear end and a fast rolling, stable front end. Frame sizes M and L come equipped with 29-inch wheels up front and in the rear with the ability to run a 27.5-inch wheel in the rear. This provides two unique riding characteristics – fast and comfortable or quick and nimble – allowing you to customise your se
| XS | 150 cm - 163 cm |
| S | 158 cm - 169 cm |
| M | 164 cm - 175 cm |
| L | 170 cm - 181 cm |
| Sizes | XS: (F 29"/R27.5"), S: (F 29"/R27.5"): M, L: (F/R 29") , MX compatible |
| Colours | Raw Carbon |
| Frame | Advanced-Grade Composite front and rear triangles, 150mm Maestro Suspension, flip chip 3 position, integrated downtube storage, 55mm Chainline |
| Fork | Fox 36 Performance Elite, 160mm, Grip 2 damper, Boost, 15x110, Kabolt, tapered, 44mm offset, custom tuned for Liv |
| Shock | Fox Float X Performance Elite 185x55, custom tuned for Liv |
| Handlebar | Giant Contact SLR TR35, composite, 35mm |
| Grips | Liv Tactal single lock-on |
| Stem | Giant Contact SL, 35mm XS: 40mm, S: 50mm, M: 50mm, L: 50mm |
| Seatpost | TranzX dropper, remote XS: 125mm travel / 30.9 x 390mm S: 125mm travel / 30.9 x 390mm M: 150mm travel / 30.9 x 440mm L: 150mm travel / 30.9 x 440mm |
| Saddle | Liv Sylvia |
| Pedals | N/A |
| Shifters | SRAM AXS POD Controller, 1x12 |
| Front Derailleur | N/A |
| Rear Derailleur | SRAM GX T-Type |
| Brakes | Shimano XT BR-M8120, hydraulic, Shimano RT-66 rotors [F]203mm, [R]180mm |
| Brake Levers | Shimano XT BL-M8100 |
| Cassette | SRAM GX T-Type, 10x52 |
| Chain | SRAM GX T-Type FlatTop |
| Crankset | SRAM GX T-Type, 30t, 55mm chainline XS: 165mm, S: 170mm, M: 170mm, L: 170mm |
| Bottom Bracket | SRAM DUB, press fit |
| Rims | Giant TRX 2 Carbon WheelSystem, 30mm inner width XS/S: [F] 29, [R] 27.5 M/L: [F] 29, [R] 29 |
| Hubs | [F] Giant MTB alloy, 6-bolt, [R] Giant MTB alloy, 3-pawl driver, 6-bolt |
| Spokes | Sapim |
| Tires | [F] Maxxis Minion DHF 29x2.5WT, 3C Max Terra, EXO, TR, tubeless [R, size M and L] Maxxis Dissector 29x2.4WT, 3C Max Terra, EXO, TR, or [R, size XS and S] Maxxis Dissector 27.5x2.4WT, 3C Max Terra, EXO, TR, tubeless |
| Extras | MRP AMG V2 chainguide, 3M tailgate protector, tubeless prepared, max tyre size 2.5", max chainring size 32t |
| Weight | The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality. |
