This full-suspension E-MTB, with its short chainstay and 140mm (rear)/150mm (front) travel, is engineered to create an ultra-light, efficient and responsive ride. Exceptional shock absorption is an added bonus on rock gardens.
A potent 85Nm of torque delivered by the lightweight SyncDrive Pro 2 Mg motor is smooth and instant, keeping you efficient and in control at all times. The ultra-slim, 400Wh battery hidden in the down tube minimises weight and provides a perfect balance of efficiency and range.
From the integrated control unit to the sleek console on the top tube and the internal cable routing, every design element embodies a high-end, modern look. It combines leading-edge E-MTB design with a user-friendly experience.
| XS | 152 cm - 163 cm |
| S | 158 cm - 169 cm |
| M | 164 cm - 175 cm |
| L | 170 cm - 181 cm |
| Motor | Giant SyncDrive Pro2 Mg, 85Nm, Magnesium Casing, powered by Yamaha, PedalPlus 6-Sensor technology |
| Controller | Giant RideControl Ergo3, grip integrated remote |
| Display | RideControl GO, frame integrated LED display ANT+ Wireless display compatible |
| Battery | EnergyPak Smart 400Wh EnergyPak Plus, Giant EnergyPak Plus 200 range extender compatible |
| Sizes | XS, S, M, L |
| Colours | Digital Blurple |
| Frame | Advanced-Grade Composite front and rear triangles, 140mm Maestro suspension , flip chip, UDH hanger 12x148mm thru-axle |

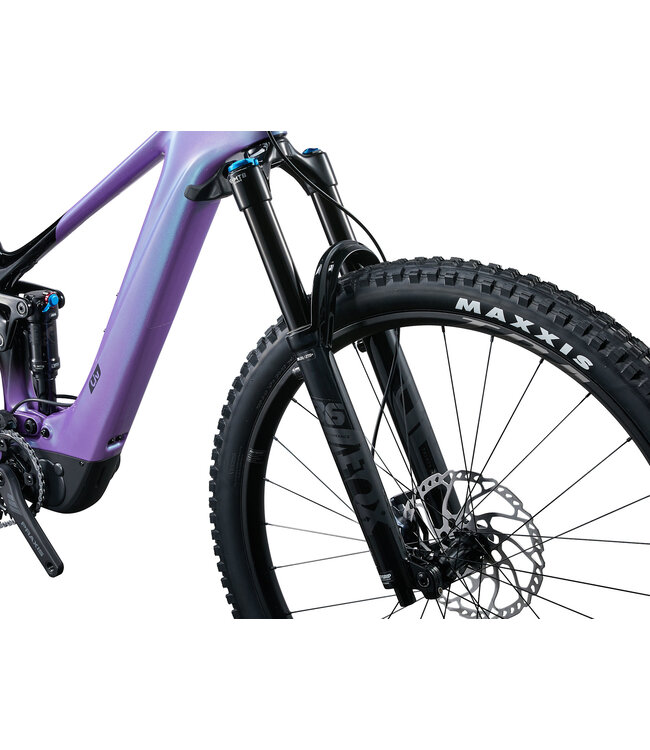

| Fork | Fox 36 Float Performance E-Tuned, 150mm travel, 44mm offset, Grip damper, Boost 110x15 |
| Shock | Fox Float DPS Performance, EVOL Large Volume sleeve, 2-position Lever, custom tuned |
| Handlebar | Giant Contact 35 Trail, 35mm |
| Grips | Liv Tactal Pro-E Single Lock-On Grips |
| Stem | Giant Contact SL 35 |
| Seatpost | TranzX travel-adjustable dropper, remote XS: 90-125mm travel / 30.9 x 409mm S: 90-125mm travel / 30.9 x 409mm M: 140-170mm travel / 30.9 x 459mm L: 140-140mm travel / 30.9 x 499mm |
| Saddle | Liv Sylvia E+ |
| Pedals | N/A |
| Shifters | Shimano SLX |
| Front Derailleur | MRP HD2 co-moulded chain guide |
| Rear Derailleur | Shimano SLX, 12-speed, Shadow+ |
| Brakes | Shimano SLX, BR-M7120, 4-piston, hydraulic disc, 203mm |
| Brake Levers | Shimano SLX, I-spec EV |
| Cassette | Shimano HG-M6100, 10-51T, 12-speed |
| Chain | KMC e.12 Turbo, EcoProteq, e-bike optimised |
| Crankset | Praxis Wave 36T Cold Forged 4130 premium steel Praxis e-Cadet+ custom forged crankarm set XS:160mm, S: 160mm, M: 165mm, L:165mm |
| Bottom Bracket | N/A |
| Rims | E-TRA Hookless Tubeless ready Alloy 29 [F] / 27.5 [R] 30mm inner width |
| Hubs | E-TRA MTB Alloy Hub, 6 Bolt, 110x15 [F] / 148x12 Shimano Micro-Spline Drive Body Pawl Driver (Pawl 36x2 T) Thru-axle [R] |
| Spokes | Sapim E-Lite [R] Race [F], e-bike optimised |
| Tires | Maxxis Minion DHF 29X2.50" Foldable, TLR, EXO [F]Maxxis Dissector 27.5x2.4" Foldable, TLR, EXO [R] |
| Extras | Tubeless kit (liquid, valves, levers) Inner tube supplied |
| Lighting | Optional:- Giant Recon series e-bike lights available and direct connectable |
| Weight | The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality. |
