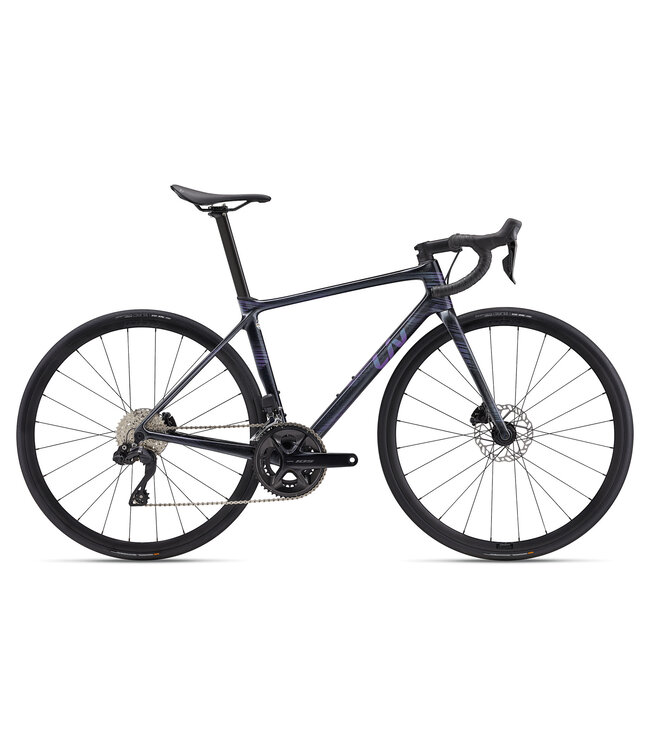

The heart of the Langma Advanced is a super-light Advanced-grade composite frameset, delivering a powerful stiffness-to-weight ratio for explosive acceleration. Updated truncated ellipse tubing reduces wind drag and boosts sprinting efficiency.
Integrated, flat-mount disc brakes deliver the confidence to carry speed into corners and navigate variable weather conditions. The Langma also accommodates tyres up to 32mm, so you can customise your set-up for the road ahead.
The adjustable Variant Composite Seatpost provides superior compliance, so you get a responsive ride that practically skims over rough roads.
| XS | 152 cm - 163 cm |
| S | 158 cm - 169 cm |
| M | 164 cm - 176 cm |
| L | 170 cm - 183 cm |
| XS | S | M | L | ||
|---|---|---|---|---|---|
| A | Seat Tube Length (mm) (inch) | 420 | 450 | 480 | 510 |
| B | Seat Tube Angle (degrees) | 75.0° | 74.5° | 74.0° | 73.5° |
| C | Top Tube Length (mm) (inch) | 508 | 524 | 540 | 555 |
| D | Head Tube Length (mm) (inch) | 120 | 135 | 155 | 175 |
| E | Head Tube Angle (degrees) | 71.0° | 72.0° | 72.5° | 72.5° |
| F | Fork Rake (mm) (inch) | 49 | 49 | 49 | 49 |
| G | Trail (mm) (inch) | 67.8 | 61.4 | 58.2 | 58.2 |
| H | Wheelbase (mm) (inch) | 973 | 977 | 984 | 996 |
| I | Chain Stay Length (mm) (inch) | 405 | 405 | 405 | 405 |
| J | Bottom Bracket Drop (mm) (inch) | 72 | 70 | 70 | 67 |
| K | Stack (mm) (inch) | 517 | 532 | 553 | 569 |
| L | Reach (mm) (inch) | 370 | 377 | 382 | 386 |
| M | Stand Over Height (mm) (inch) | 700 | 730 | 760 | 790 |
| O | Stem Length (mm) (inch) | 80 | 90 | 100 | 110 |
| P | Crank Length (mm) (inch) | 165 | 170 | 170 | 172.5 |
| Q | Wheel Size | 700C | 700C | 700C | 700C |
| Sizes | XS, S, M, L |
| Colours | Black Diamond |
| Frame | Advanced-grade composite, 12x142mm thru-axle, disc |
| Fork | Advanced-grade composite, full-composite OverDrive steerer, 12x100mm, disc |
| Shock | N/A |
| Handlebar | Liv Contact XS:36cm, S:38cm, M:40cm, L:42cm |
| Grips | Liv All Condition |
| Stem | Giant Contact XS:80mm, S:90mm, M:100mm, L:110mm |
| Seatpost | Giant Variant, composite, -5/+15mm offset |
| Saddle | Liv Approach |
| Pedals | N/A |
| Shifters | Shimano 105 Di2 |
| Front Derailleur | Shimano 105 Di2 |
| Rear Derailleur | Shimano 105 Di2 |
| Brakes | Shimano 105 hydraulic, Giant MPH rotors [F]160mm, [R]140mm |
| Brake Levers | Shimano 105 Di2 |
| Cassette | Shimano Di2, 12-speed, 11x34 |
| Chain | KMC X12 |
| Crankset | Shimano 105, 36/52 XS:165mm, S:170mm, M:170mm, L:172.5mm |
| Bottom Bracket | Shimano, press fit |
| Rims | Giant P-R2 Disc wheelset, alloy |
| Hubs | Giant alloy, 12mm thru-axle |
| Spokes | Sapim |
| Tires | Giant Course 1, tubeless, 700x25c (28mm), folding |
| Extras | Tubeless prepared, 32mm max tyre size |
| Weight | The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality. |
