Now 297g lighter*, the Advanced-grade composite frameset also features greater stiffness for efficient power transfer, a massive advantage on climbs and at speed. New FlexPoint Pro suspension minimises weight by minimising parts. And a shorter chainstay offers greater agility for manoeuvring switchbacks, and snappy acceleration for seizing every overtake opportunity. *Compared to previous generation
With its patented, linkage-driven, single-pivot design, the new FlexPoint Pro suspension delivers 115mm of smooth, active rear-wheel travel, so you can maximise power and traction over ever-changing and uber-challenging terrain. Combined with a slacker head tube angle and 120mm of front suspension, this setup ensures you're equipped to dominate technical descents.
Roll over just about anything on 29-inch wheels designed for stability and efficiency. Updated geometry provides a longer reach, putting you in a lower and more aggressive body position. A steeper seat tube angle increases pedaling efficiency on even the steepest climbs. And the modified cockpit includes a 35mm composite handlebar and alloy stem for steering precision.
| XS | 150 cm - 163 cm |
| S | 158 cm - 169 cm |
| M | 164 cm - 175 cm |
| L | 170 cm - 181 cm |
| XS | S | M | L | ||
|---|---|---|---|---|---|
| A | Seat Tube Length (mm) (inch) | 380 | 410 | 440 | 470 |
| A1 | Seat Post Insertion Depth (mm) (inch) | 203 | 233 | 263 | 293 |
| B | Seat Tube Angle (degrees) | 76.0° | 76.0° | 76.0° | 76.0° |
| C | Top Tube Length (mm) (inch) | 555 | 570 | 585 | 600 |
| D | Head Tube Length (mm) (inch) | 90 | 95 | 105 | 115 |
| E | Head Tube Angle (degrees) | 67.0° | 67.0° | 67.0° | 67.0° |
| F | Fork Rake (mm) (inch) | 44 | 44 | 44 | 44 |
| G | Trail (mm) (inch) | 112.2 | 112.2 | 112.2 | 112.2 |
| H | Wheelbase (mm) (inch) | 1121 | 1137 | 1154 | 1170 |
| I | Chain Stay Length (mm) (inch) | 435 | 435 | 435 | 435 |
| J | Bottom Bracket Drop (mm) (inch) | 45 | 45 | 45 | 45 |
| K | Stack (mm) (inch) | 599 | 603 | 612 | 622 |
| L | Reach (mm) (inch) | 406 | 420 | 432 | 445 |
| M | Stand Over Height (mm) (inch) | 748 | 767 | 770 | 791 |
| O | Stem Length (mm) (inch) | 60 | 60 | 70 | 70 |
| P | Crank Length (mm) (inch) | 165 | 170 | 170 | 175 |
| Q | Wheel Size | 29" | 29" | 29" | 29" |
| Sizes | XS, S, M, L |
| Colours | Ice Age |
| Frame | Advanced-grade composite front and rear triangles, 115mm FlexPoint Pro Suspension |
| Fork | RockShox Sid, 120mm, Boost 15x110, 44mm offset, Rush RL lockout, custom tuned for Liv |
| Shock | Fox Float SL Performance, 3 position lockout, custom tuned for Liv |
| Handlebar | Giant Contact XC Flat, alloy, 35mm |
| Grips | Giant XC Pro |
| Stem | Giant Contact SL XC, alloy, 35mm XS: 60mm, S: 60mm, M: 70mm, L: 70mm |
| Seatpost | Giant Contact Switch, adjustable dropper, remote XS: 110-140mm travel / 30.9 x 395mm S: 110-140mm travel / 30.9 x 395mm M: 140-170mm travel / 30.9 x 470mm L: 140-170mm travel / 30.9 x 470mm |
| Saddle | Fi'zi:k Vento Argo R5 |
| Pedals | N/A |

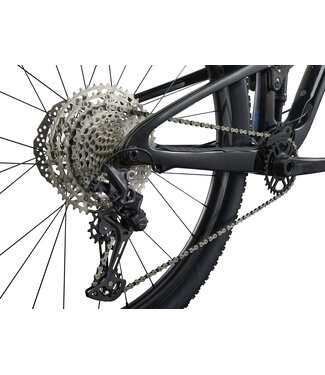

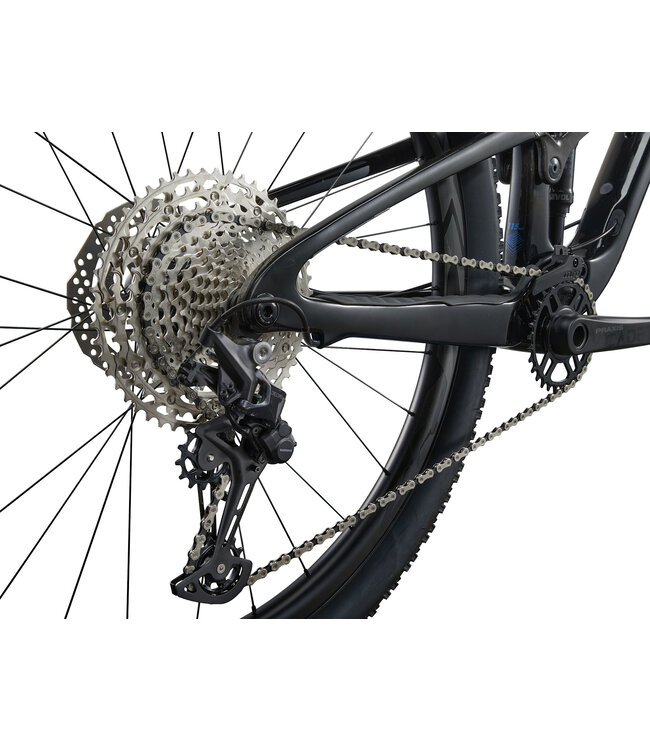

| Shifters | Deore M6100, 1x12 |
| Front Derailleur | N/A |
| Rear Derailleur | Shimano Deore RD-M6100 |
| Brakes | Shimano Deore MT410, hydraulic, Shimano RT-26 rotors [F]180mm, [R]160mm |
| Brake Levers | Shimano MT-401 |
| Cassette | Shimano Deore M6100, 10x51 |
| Chain | KMC X12 |
| Crankset | Praxis Cadet, steel chainring 30t, 55mm chainline XS: 165mm, S: 170mm, M: 170mm, L: 175mm |
| Bottom Bracket | Praxis, press fit |
| Rims | Giant XCR 2 29 Carbon WheelSystem |
| Hubs | [F] Giant MTB alloy, 6-bolt, [R] Giant MTB alloy, 3-pawl driver, 6-bolt |
| Spokes | Sapim |
| Tires | Maxxis Aspen, 29x2.4, foldable, TLR, EXO, tubeless |
| Extras | Tubeless prepared, 2.4" max tyre size, 34t max chainring size, Giant/MRP CS chain guide *Not compatible with 2023 or earlier RockShox SID rear shocks. |
| Weight | The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality. |
