AeroSystem Shaping, a result of CFD analysis and dynamic wind-tunnel testing, optimises aerodynamic performance at every yaw angle. The truncated ellipse airfoil tube shapes produces outstanding overall aero performance.
All-new cable routing through the handlebar and frame makes it quicker and easier to adjust or change cockpit components and fine-tune performance and riding position.
Advanced SL-grade composite frameset features Giant’s pro-level composite materials and manufacturing processes. The result is 225 grams of weight savings compared to the previous generation and an even greater stiffness-to-weight advantage.
| S | 165 cm - 175 cm |
| M | 171 cm - 181 cm |
| ML | 177 cm - 187 cm |
| L | 183 cm - 193 cm |
| XL | 189 cm - 199 cm |
| S | M | ML | L | XL | ||
|---|---|---|---|---|---|---|
| A | Seat Tube Length (mm) (inch) | 710 | 740 | 770 | 800 | 830 |
| B | Seat Tube Angle (degrees) | 74.0° | 73.5° | 73.0° | 73.0° | 72.5° |
| C | Top Tube Length (mm) (inch) | 535 | 550 | 565 | 580 | 600 |
| D | Head Tube Length (mm) (inch) | 130 | 145 | 165 | 185 | 200 |
| E | Head Tube Angle (degrees) | 72.3° | 73.0° | 73.0° | 73.0° | 73.0° |
| F | Fork Rake (mm) (inch) | 45 | 45 | 45 | 45 | 45 |
| G | Trail (mm) (inch) | 62.5 | 57.8 | 57.8 | 57.8 | 57.8 |
| H | Wheelbase (mm) (inch) | 977 | 980 | 991 | 1006 | 1020 |
| I | Chain Stay Length (mm) (inch) | 405 | 405 | 405 | 405 | 405 |
| J | Bottom Bracket Drop (mm) (inch) | 70 | 70 | 67 | 67 | 67 |
| K | Stack (mm) (inch) | 528 | 545 | 562 | 581 | 596 |
| L | Reach (mm) (inch) | 383 | 388 | 393 | 402 | 412 |
| M | Stand Over Height (mm) (inch) | 755 | 775 | 794 | 821 | 834 |
| O | Stem Length (mm) (inch) | 90 | 100 | 110 | 110 | 120 |
| P | Crank Length (mm) (inch) | 170 | 172.5 | 172.5 | 175 | 175 |
| Q | Wheel Size | 700C | 700C | 700C | 700C | 700C |
| Sizes | S, M, M/L, L, XL |
| Colours | Cobalt/Dark Blue |

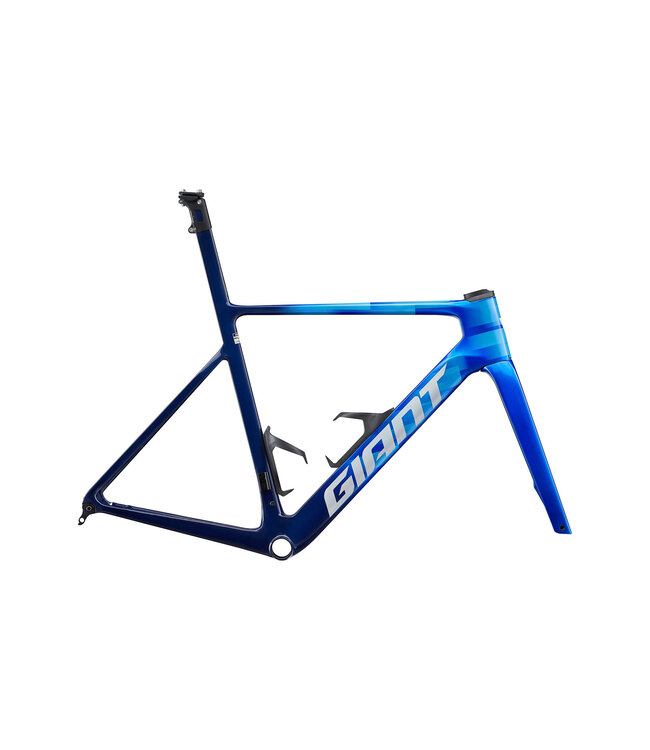

| Frame | Advanced SL-Grade Composite, integrated seatpost, disc |
| Fork | Advanced SL-Grade Composite, full-composite OverDrive Aero steerer, disc |
| Seatpost | Advanced SL-Grade composite, integrated design, -5/+15mm offset |
| Bottom Bracket | BB86 accepts press fit style BB only, bearing set not included |
| Extras | Front & rear 12mm thru-axles, 20mm & 45mm ISP clamps, Computer Mount, Bottle Cages |
| Max Tire Clearance | 32mm |
| Weight | The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality. |
