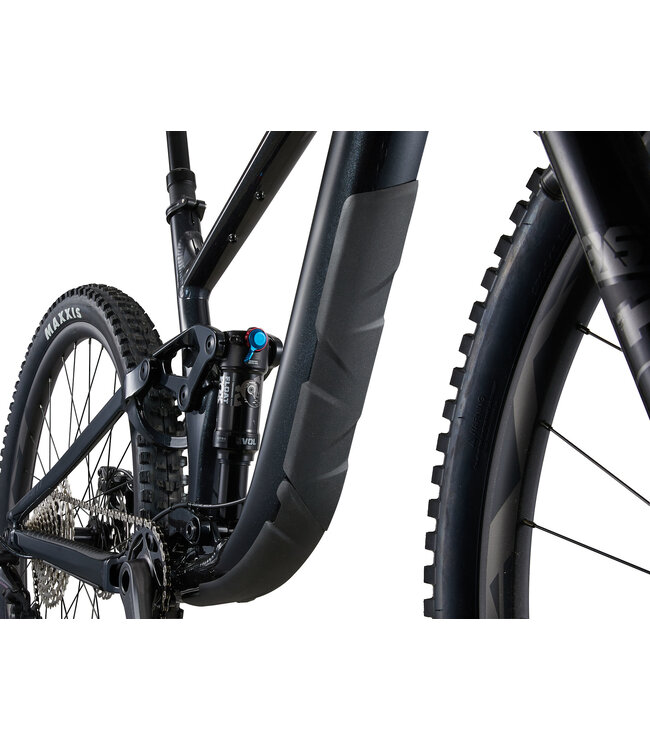

A new Maestro rear suspension system gives trail riders 140mm of rear travel. The trunnion mount shock and Advanced Forged Composite rocker arm combine for a longer stroke that has a smooth, active feel, plus greater stiffness in the chassis for precision control. The rear suspension is paired with a 150mm travel fork, providing superior confidence and control on technical singletrack.
A three-position Maestro flip chip lets riders dial in frame geometry for their riding style and terrain. The high setting adds more ground clearance, a good option for tight, technical terrain. In the low setting, the head tube gets slacker and the bottom bracket drops, ideal for confident handling at higher speeds. The middle position is neutral. In addition, a new headset flip chip adjusts reach so that riders can easily achieve their preferred positioning.
All models come with 29-inch front and rear wheels, but the flip chip lets you opt for a mixed wheel setup including a 27.5 rear. The stock 29-inch rear wheel optimizes stability and roll-over capabilities, while a 27.5 delivers a more agile, snappier feel and more saddle-to-tyre clearance in the rear. Some riders favor this “mullet” setup for riding steep, technical terrain.
S | 163 cm - 172 cm |
M | 171 cm - 180 cm |
L | 179 cm - 188 cm |
XL | 187 cm - 196 cm |
Sizes | S, M, L, XL |
Colours | Metallic Black |
Frame | ALUXX SL-Grade Aluminium front and rear triangles, 140mm Maestro suspension, 12x148mm thru-axle, 27.5 or 29-inch rear wheel compatible, flip chip - Maestro 3, flip chip - headset, integrated down tube storage |
Fork | Fox 36 Float Rhythm, 150mm, GRIP damper, 15x110 Kabolt X, 44mm offset |
Shock | Fox Float Performance, 185/52.5, custom tuned for Giant |
Handlebar | Giant Contact TR35, alloy, 20mm rise |
Grips | Giant Tactal Pro Single Lock-On, 132x35mm |
Stem | Giant Contact SL 35 S:40mm, M:40mm, L:50mm, XL:50mm |
Seatpost | Contact Switch AT dropper, remote S: 110-140mm travel / 30.9 x 395mm M: 140-170mm travel / 30.9 x 470mm L: 170-200mm travel / 30.9 x 530mm XL: 170-200mm travel / 30.9 x 530mm |
Saddle | Giant Romero |
Pedals | N/A |
Shifters | Shimano Deore, 1x12 |
Front Derailleur | N/A |
Rear Derailleur | Shimano Deore, Shadow + |
Brakes | Shimano BR-MT420, hydraulic, four piston, Shimano RT-66 rotors [F]203mm, [R]180mm |
Brake Levers | Shimano Deore BL-MT401 |
Cassette | Shimano Deore M6100, 10x51 |
Chain | KMC X-12 |
Crankset | Praxis Cadet HD M24, 30t, 55mm chainline S:165mm, M:170mm, L:170mm, XL:170mm |
Bottom Bracket | Praxis, press fit |
Rims | Giant AM Tubeless ready Alloy 29, 30mm inner width |
Hubs | [F] Giant Boost 110x15, Sealed [R] Giant Boost148x12, Sealed Bearing, HG |
Spokes | Sapim Race |
Tires | [F] Maxxis Minion DHF, 29x2.5 WT, 60 tpi, EXO, TR [R] Maxxis Dissector 29x2.4 WT, 60 tpi, EXO TR, tubeless |
Extras | Tubeless prepared, 2.5" max tyre size, 34t max chainring size, 3M tailgate protector, down tube and chainstay protection |
Weight | The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality. |
