New Maestro rear suspension adds 5mm of travel over previous generation, going from 135mm to 140mm. A trunnion mount shock and Advanced Forged Composite rocker arm combine for a longer stroke with a smooth, active feel. Rear suspension is paired with a 150mm travel fork for superior confidence and control on technical singletrack terrain.
A three-position Maestro flip chip lets you dial in frame geometry for your riding style and terrain. The high setting adds more ground clearance, a good option for tight, technical terrain. The low setting creates a slacker head angle and lower bottom bracket for confident handling at higher speeds. The middle position is neutral. In addition, a new headset flip chip provides 10mm of reach adjustment.
All models come with 29-inch front and rear wheels, but the flip chip lets you opt for a mixed wheel setup including a 27.5 rear. The stock setup optimizes stability and roll-over speed, while a 27.5 rear wheel delivers a snappier feel and more saddle-to-tire clearance. Some riders favor this “mullet” setup for riding steep, technical terrain.
S | 163 cm - 172 cm |
M | 171 cm - 180 cm |
L | 179 cm - 188 cm |
XL | 187 cm - 196 cm |
Sizes | S, M, L, XL |
Colours | Sangria/Chrome |
Frame | Advanced-Grade Composite front and rear triangles, 140mm Maestro suspension, 12x148mm thru-axle, 27.5 or 29-inch rear wheel compatible, flip chip - Maestro 3, flip chip - headset, integrated down tube storage |
Fork | Fox 36 Float Rhythm, 150mm, GRIP damper, 15x110 Kabolt X, 44mm offset |
Shock | Fox Float Performance, 185/52.5, custom tuned for Giant |

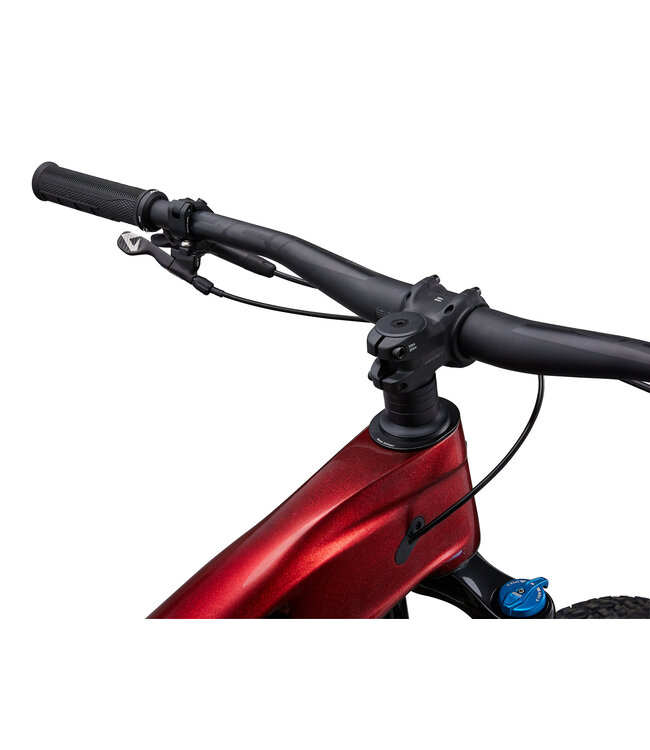

Handlebar | Giant Contact TR35, alloy, 20mm rise |
Grips | Giant Tactal Pro Single Lock-On, 132x35mm |
Stem | Giant Contact SL 35 S:40mm, M:40mm, L:50mm, XL:50mm |
Seatpost | Contact Switch AT dropper, remote S: 110-140mm travel / 30.9 x 395mm M: 140-170mm travel / 30.9 x 470mm L: 170-200mm travel / 30.9 x 530mm XL: 170-200mm travel / 30.9 x 530mm |
Saddle | Giant Romero SL |
Pedals | N/A |
Shifters | Shimano SLX M-7100, I-Spec EV, 1x12 |
Front Derailleur | N/A |
Rear Derailleur | Shimano SLX M-7100 |
Brakes | Shimano Deore BR-M6120, hydraulic, four piston, Shimano RT-66 rotors [F]203mm, [R]180mm |
Brake Levers | Shimano Deore BL-M6100 |
Cassette | Shimano SLX M7100, 10x51 |
Chain | KMC X-12 |
Crankset | Shimano MT512-1, 30t, 55mm chainline S:165mm, M:170mm, L:170mm, XL:170mm |
Bottom Bracket | Shimano Press Fit |
Rims | Giant TRX WheelSystem, carbon, hookless, 30mm inner width, 40mm outer width, 22mm height, Wide Guard Technology |
Hubs | [F] Giant Alloy, 6 Bolt [R] TRX HE, Alloy, 72 Pawl Driver, 6 bolt |
Spokes | Sapim, 28, straight pull, DBL Technology |
Tires | [F] Maxxis Minion DHF, 29x2.5 WT, 3C 60 tpi, MaxxTerra, EXO, TR [R] Maxxis Dissector 29x2.4 WT, 60 tpi, 3C MaxxTerra, TR, tubeless |
Extras | Tubeless prepared, 2.5" max tyre size, 34t max chainring size, 3M tailgate protector, down tube and chainstay protection |
Weight | The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality. |
