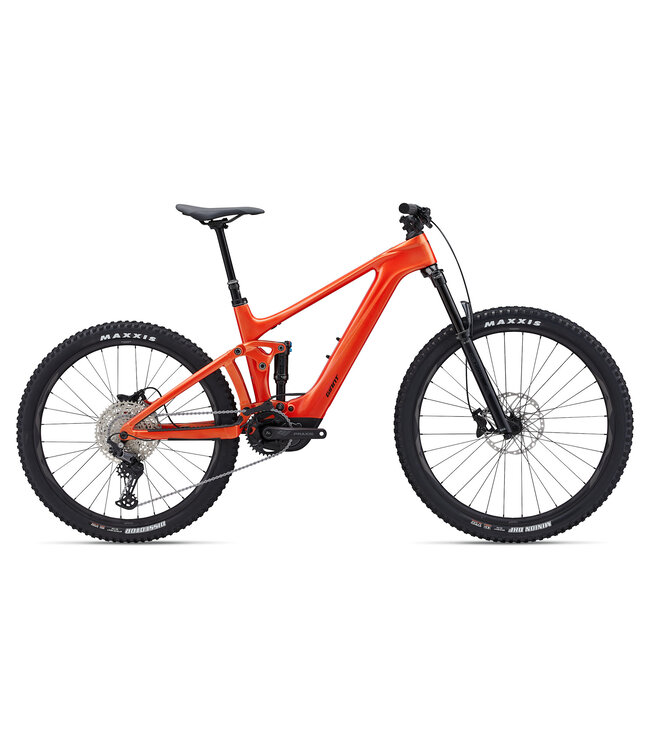

EnergyPak 400 battery system is ultra slim, delivering all the power you need, but in a smaller package that’s cleanly integrated into the lightweight composite frameset.
RideControl Ergo 3 remote attaches to the composite Giant Contact handlebar. The control can be mounted to either side of the handlebar so you can customise your controls for a clean, uncluttered cockpit.
New SyncDrive Pro Magnesium motor features a magnesium casing that reduces weight by 50g. It weighs just 2.5kg and delivers 85Nm of torque while retaining the instant engagement that characterises SyncDrive Pro motors. It’s also engineered for a reduced noise level and quiet performance.
| S | 163 cm - 174 cm |
| M | 171 cm - 182 cm |
| L | 179 cm - 190 cm |
| XL | 187 cm - 199 cm |
| Motor | SyncDrive Pro2, 85Nm, powered by Yamaha |
| Controller | RideControl Ergo 3, grip integrated |
| Display | RideControl GO, frame integrated LED display ANT+ Wireless display compatible |
| Battery | EnergyPak Smart 400Wh EnergyPak Plus, range extender compatible |
| Charger | EnergyPak 4A smart charger compact |
| Sizes | S, M, L, XL |
| Colours | Helios Orange |
| Frame | Advanced-Grade Composite front triangle, ALUXX SL-Grade rear triangle, 140mm Maestro suspension, flip chip, UDH hanger 12x148mm thru-axle |
| Fork | Marzocchi Bomber Z2 E-Tuned, 29er, 150mm travel, 44mm offset, RAIL damper Sweep-Adj, Kabolt 110 |
| Shock | Fox Float Performance, EVOL Large Volume sleeve, 2pos, 185x52.5mm Trunnion mount, custom tuned, recommended sag: 30% |
| Handlebar | Giant Contact SL 35 Trail, 35mm |
| Grips | Giant Tactal Pro-E, single lock-on |
| Stem | Giant Contact SL 35 S:40mm, M:40mm, L:40mm, XL:50mm |
| Seatpost | TranzX travel-adjustable dropper, remote S: 120-150mm travel / 30.9 x 459mm M: 140-170mm travel / 30.9 x 499mm L: 170-200mm travel / 30.9 x 559mm XL: 170-200mm travel / 30.9 x 559mm |
| Saddle | Giant Romero |
| Pedals | N/A |
| Shifters | Shimano Deore |
| Front Derailleur | MRP HD2 co-moulded chain guide |
| Rear Derailleur | Shimano Deore 12-speed, Shadow+ |
| Brakes | Shimano BR-MT420, 4-piston, hydraulic disc,203mm [F/R] |
| Brake Levers | Shimano Deore, I-spec EV |
| Cassette | Shimano CS-M6100-12, 10-51T, 12-speed |
| Chain | KMC e.12 Turbo, EcoProteq, e-bike optimised |
| Crankset | Praxis Wave 36T Cold Forged 4130 premium steel Praxis e-Cadet+ custom forged crankarm set S:160mm, M: 165mm, L:165mm, XL:170mm |
| Bottom Bracket | N/A |
| Rims | Giant AM30, Tubeless ready, 30mm inner width, 29" [F] / 27.5" [R] |
| Hubs | Shimano MT410 Boost, Center-Lock, 110x15 [F] 148x12 Shimano Micro-Spline Drive Body Thru-axle [R] |
| Spokes | Sapim, e-bike optimised |
| Tires | Maxxis Minion DHF 29X2.50" Foldable, TLR, EXO [F]Maxxis Dissector 27.5x2.4" Foldable, TLR, EXO [R] |
| Extras | Tubeless kit (liquid, valves, levers) |
| Lighting | Optional:- Giant Recon series e-bike lights available and direct connectable |
| Weight | The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality. |
