Advanced composite frameset is 241g lighter than previous generation. The bottom bracket area is stiffer for faster acceleration, and a steeper seat tube puts the rider in an efficient climbing position.

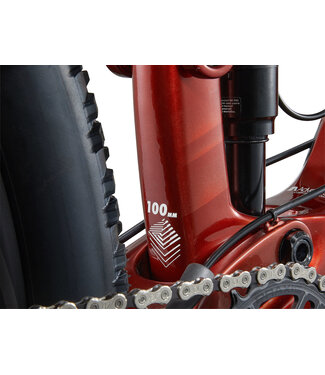

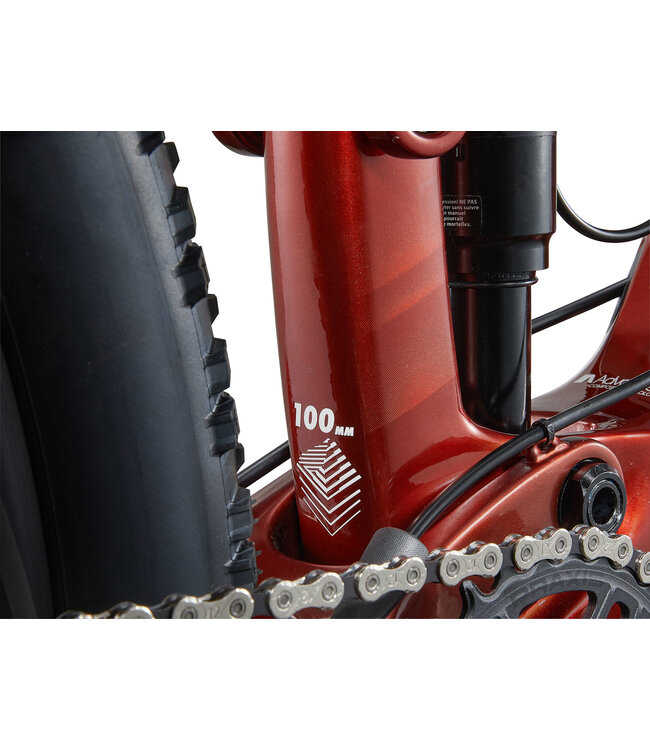

FlexPoint Pro suspension delivers 100mm of smooth, active rear travel. The frameset features modern XC geometry including a slacker 67.5-degree head tube and 110mm suspension fork for technical descents.
Frame geometry and suspension are optimised for fast and stable 29-inch wheels. A longer reach and modified cockpit including a 35mm composite handlebar and alloy stem further boost balance and stability on XC terrain.
| S | 163 cm - 172 cm |
| M | 171 cm - 180 cm |
| L | 179 cm - 188 cm |
| XL | 187 cm - 198 cm |
| S | M | L | XL | ||
|---|---|---|---|---|---|
| A | Seat Tube Length (mm) (inch) | 390 | 420 | 465 | 495 |
| A1 | Seat Post Insertion Depth (mm) (inch) | 185 | 225 | 260 | 290 |
| B | Seat Tube Angle (degrees) | 75.5° | 75.5° | 75.5° | 75.5° |
| C | Top Tube Length (mm) (inch) | 572 | 604 | 626 | 653 |
| D | Head Tube Length (mm) (inch) | 90 | 95 | 105 | 115 |
| E | Head Tube Angle (degrees) | 67.5° | 67.5° | 67.5° | 67.5° |
| F | Fork Rake (mm) (inch) | 44 | 44 | 44 | 44 |
| G | Trail (mm) (inch) | 109 | 109 | 109 | 109 |
| H | Wheelbase (mm) (inch) | 1127 | 1159 | 1183 | 1212 |
| I | Chain Stay Length (mm) (inch) | 435 | 435 | 435 | 435 |
| J | Bottom Bracket Drop (mm) (inch) | 42 | 42 | 42 | 42 |
| K | Stack (mm) (inch) | 589 | 593 | 603 | 612 |
| L | Reach (mm) (inch) | 420 | 450 | 470 | 495 |
| M | Stand Over Height (mm) (inch) | 745 | 750 | 777 | 800 |
| O | Stem Length (mm) (inch) | 60 | 70 | 70 | 70 |
| P | Crank Length (mm) (inch) | 170 | 175 | 175 | 175 |
| Q | Wheel Size | 29" | 29" | 29" | 29" |
| Sizes | S, M, L, XL |
| Colours | Mars Dust |
| Frame | Advanced-Grade Composite front and rear triangles, 100mm FlexPoint Pro suspension, UDH hanger, 12x148mm thru-axle, 55mm Chainline |
| Fork | Giant Crest 34 SL RRL, 110mm, Boost 15x110, 44mm offset, 3 position lockout, remote lockout |
| Shock | Giant Crest Rear shock, Trunnion Mount, 165x45, 3 position lockout, custom made for Anthem |
| Handlebar | Giant Contact XC Flat, alloy, 35mm |
| Grips | RockShox TwistLoc Grips |
| Stem | Giant Contact SL XC, 35mm S:60mm, M:70mm, L:70mm, XL:70mm |
| Seatpost | Giant Contact Switch Core dropper, remote S: 100mm travel / 30.9 x 350mm M: 120mm travel / 30.9 x 400mm L: 120mm travel / 30.9 x 400mm XL: 120mm travel / 30.9 x 400mm |
| Saddle | Giant Grit Core |
| Pedals | N/A |
| Shifters | Shimano Deore SL-M6100, 1x12 |
| Front Derailleur | N/A |
| Rear Derailleur | Shimano Deore RD-M6100 Shadow+ |
| Brakes | Shimano Deore MT410, hydraulic, Shimano RT-26 rotors [F]180mm, [R]160mm |
| Brake Levers | Shimano Deore MT401 |
| Cassette | Shimano Deore M6100, 10x51 |
| Chain | KMC X-12 |
| Crankset | Praxis Cadet, 32t, 55mm chainline S:170mm, M:175mm, L:175mm, XL:175mm |
| Bottom Bracket | Praxis, press fit |
| Rims | Giant XCT 29 Alloy |
| Hubs | [F] Giant MTB alloy, 6-bolt [R] Giant MTB alloy, 3-pawl driver, 6-bolt |
| Spokes | Sapim |
| Tires | Maxxis Aspen 29x2.4, foldable, 120tpi, TLR, EXO, tubeless |
| Extras | Tubeless prepared, 2.4" max tyre size, 34t max chainring size, RockShox TwsitLoc 3-position remote, Giant/MRP CS chain guide |
| Weight | The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality. |
