It looks like an analogue road bike and, best of all, it rides like one. Experience the revolutionary fusion of electric power and traditional road cycling with our new E-Road exclusive riding pattern. It provides the ultimate smooth motor support so your riding experience still feels authentic and au naturel.

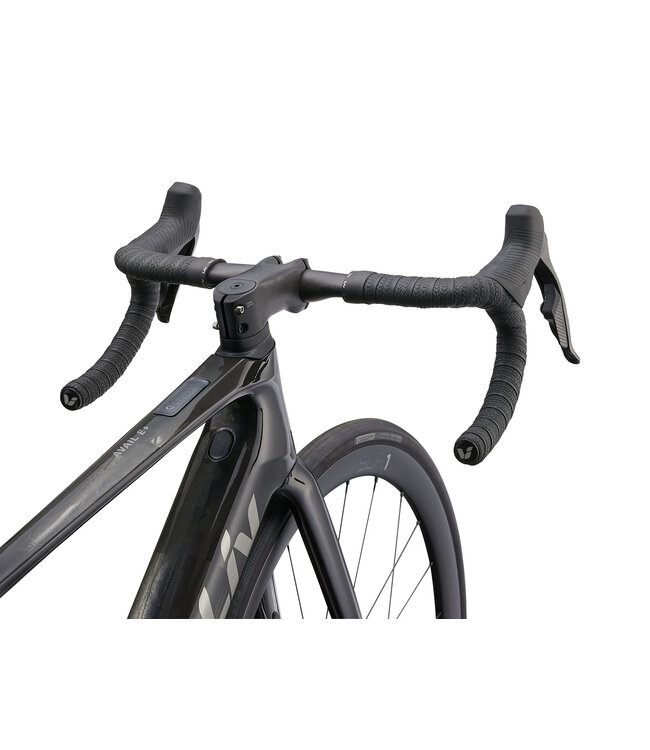

The Avail Advanced E+ Elite provides up to 600Wh with its 400Wh main battery and the optional 200Wh range extender*. It features Avail endurance geometry for long-ride comfort, while the Liv D-Fuse handlebar and seatpost absorb road vibrations, giving you a smooth and enjoyable riding experience. *sold separately
The SyncDrive Move Plus Motor is a powerful rear hub motor with a maximum torque of 30Nm which is comparable to 75Nm in a mid-drive motor. It provides the maximum assisted speed to reach the speed limit of 25km/h in Australia.
| XS | 150 cm - 163 cm |
| S | 158 cm - 169 cm |
| M | 164 cm - 175 cm |
| XS | S | M | ||
|---|---|---|---|---|
| A | Seat Tube Length (mm) (inch) | 400 | 435 | 470 |
| B | Seat Tube Angle (degrees) | 74.5° | 74.5° | 74.0° |
| C | Top Tube Length (mm) (inch) | 515 | 525 | 540 |
| D | Head Tube Length (mm) (inch) | 120 | 135 | 155 |
| E | Head Tube Angle (degrees) | 70.5° | 71.0° | 72.0° |
| F | Fork Rake (mm) (inch) | 50 | 50 | 50 |
| G | Trail (mm) (inch) | 72 | 68.3 | 61.8 |
| H | Wheelbase (mm) (inch) | 993 | 999.2 | 1003 |
| I | Chain Stay Length (mm) (inch) | 420 | 420 | 420 |
| J | Bottom Bracket Drop (mm) (inch) | 80 | 80 | 80 |
| K | Stack (mm) (inch) | 528.9 | 545 | 562.8 |
| L | Reach (mm) (inch) | 368 | 373.6 | 378.4 |
| M | Stand Over Height (mm) (inch) | 677 | 708 | 743 |
| O | Stem Length (mm) (inch) | 80 | 90 | 100 |
| P | Crank Length (mm) (inch) | 165 | 165 | 170 |
| Q | Wheel Size | 700C | 700C | 700C |
| Motor | Giant SyncDrive Move Plus, Rear Hub, 30Nm |
| Controller | Mode support switch from SRAM blips |
| Display | RideControl GO, frame integrated LED display ANT+ Wireless display compatible |
| Battery | EnergyPak Smart 400Wh EnergyPak Plus, range extender compatible |
| Charger | EnergyPak 4A smart charger compact |
| Connectivity | Giant RideControl App enabled ANT+ wireless display signal with e-bike profile |
| Sizes | XS, S, M |
| Colours | Raw Carbon |
| Frame | Advanced-Grade Composite, disc, 12x145mm |
| Fork | Advanced SL-Grade Composite, Full-Composite OverDrive Aero Steerer, disc, 12x100mm |
| Shock | - |
| Handlebar | Liv Contact SLR D-Fuse XS:38/40cm, S:40/42cm, M:40/42cm |
| Grips | Stratus Lite 3.0 |
| Stem | Giant Contact SLR AeroLight XS:80mm, S:90mm, M:100mm |
| Seatpost | Giant D-Fuse SLR, Composite, -5/+15mm offset |
| Saddle | Liv Alacra SL |
| Pedals | N/A |
| Shifters | SRAM RED AXS HRD, ED-RED-E1 |
| Front Derailleur | SRAM RED AXS, FD-RED-E-E1 |
| Rear Derailleur | SRAM RED AXS, RD-RED-E-E1 |
| Brakes | SRAM RED AXS HRD, ED-RED-E1, SRAM CenterLine X rotors [F]160mm, [R]160mm |
| Brake Levers | SRAM RED AXS HRD, ED-RED-E1 |
| Cassette | SRAM RED XG-1290, 12-speed, 10-33 |
| Chain | SRAM RED E1, 12-speed |
| Crankset | SRAM Force X-SYNC 33/46T BCD107 chain ring Praxis E Crank Carbon ISIS, XS: 165mm, S:165mm, M:170mm |
| Bottom Bracket | Giant E+ System BBSS |
| Rims | Giant SLR 1 E+ 36mm Carbon Disc Wheel System, Hookless, Tubeless Ready |
| Hubs | [F] Giant SLR 1, 24H [R] Giant SyncDrive Move Plus, 28H |
| Spokes | Sapim spoke E-Light [R] CX-Ray [F], e-bike optimised |
| Tires | CADEX Classics, tubeless, 700x28c, folding |
| Lighting | Seatpost clamp integrated tail light |
| Weight | The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality. |
