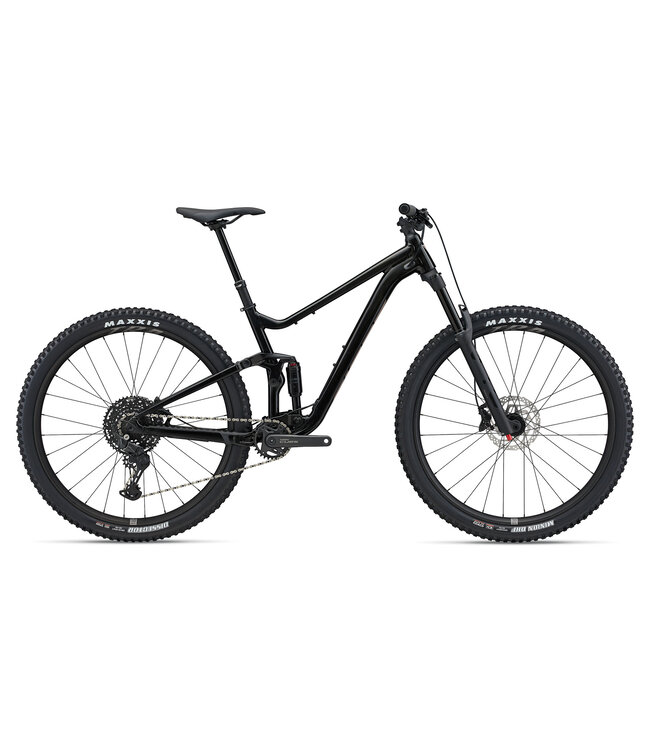

Handcrafted with lightweight, stiff and durable ALUXX aluminium, the new Stance 29 is an ideal entry to full-suspension MTB performance.
FlexPoint Suspension helps riders tackle challenging terrain and improve their trail riding capabilities. With 125mm of rear wheel travel and 140mm up front, it’s a versatile all-rounder for a variety of terrain.
Larger diameter wheels roll over rugged terrain with improved balance and stability. With frame geometry that’s optimised for 29-inch wheels, Stance 29 helps riders maintain momentum, carry speed, and tackle technical trails with greater ease.
| S | 163 cm - 172 cm |
| M | 171 cm - 180 cm |
| L | 179 cm - 188 cm |
| XL | 187 cm - 198 cm |
| S | M | L | XL | ||
|---|---|---|---|---|---|
| A | Seat Tube Length (mm) (inch) | 400 | 425 | 450 | 475 |
| A1 | Seat Post Insertion Depth (mm) (inch) | 217 | 242 | 268 | 293 |
| B | Seat Tube Angle (degrees) | 76.5° | 76.5° | 76.5° | 76.5° |
| C | Top Tube Length (mm) (inch) | 563 | 595 | 622 | 654 |
| D | Head Tube Length (mm) (inch) | 100 | 110 | 120 | 125 |
| E | Head Tube Angle (degrees) | 65.5° | 65.5° | 65.5° | 65.5° |
| F | Fork Rake (mm) (inch) | 44 | 44 | 44 | 44 |
| G | Trail (mm) (inch) | 124.4 | 124.4 | 124.4 | 124.4 |
| H | Wheelbase (mm) (inch) | 1164 | 1198 | 1227 | 1260 |
| I | Chain Stay Length (mm) (inch) | 440 | 440 | 440 | 440 |
| J | Bottom Bracket Drop (mm) (inch) | 40 | 40 | 40 | 40 |
| K | Stack (mm) (inch) | 614 | 623 | 632 | 636 |
| L | Reach (mm) (inch) | 415 | 445 | 470 | 500 |
| M | Stand Over Height (mm) (inch) | 735 | 734 | 753 | 758 |
| O | Stem Length (mm) (inch) | 40 | 40 | 50 | 50 |
| P | Crank Length (mm) (inch) | 165 | 170 | 170 | 170 |
| Q | Wheel Size | [F] 29" [R | [F] 29" [R | [F] 29" [R | [F] 29" [R |
| Sizes | S, M, L, XL |
| Colours | Panther |
| Frame | ALUXX-grade aluminum, 125mm FlexPoint suspension, 12x148mm thru-axle |
| Fork | Giant STL 34 RCL, 140mm, Boost 15x110 |
| Shock | Suntour Raidon R |
| Handlebar | Giant Contact Trail, 31.8mm |
| Grips | Giant Sole-O |
| Stem | Giant Contact S:40mm, M:40mm, L:50mm, XL:50mm |
| Seatpost | Giant Contact Switch AT dropper, adjustable travel, remote S: 110-140mm travel / 30.9 x 395mm M: 140-170mm travel / 30.9 x 470mm L: 170-200mm travel / 30.9 x 530mm XL: 170-200mm travel / 30.9 x 530mm |
| Saddle | Giant Romero |
| Pedals | N/A |
| Shifters | Shimano CUES SL-6000, 1x10 |
| Front Derailleur | N/A |
| Rear Derailleur | Shimano CUES, U6000, Shadow+ |
| Brakes | Shimano BR-MT420, hydraulic, Shimano RT-26 rotors [F]180mm, [R]180mm |
| Brake Levers | Shimano MT-401 |
| Cassette | Shimano CUES, CS-LG300, 11x48 |
| Chain | KMC X-11 |
| Crankset | Shimano CUES FC-U6000, 30t S:170mm, M:170mm, L:170mm, XL:170mm |
| Bottom Bracket | Shimano, threaded |
| Rims | Giant TRA Hookless Tubeless ready Alloy 29", 30mm inner width |
| Hubs | [F] Giant Boost 110x15, Sealed Bearing [R] Giant Boost 148x12, Sealed Bearing, HG |
| Spokes | Sapim Race |
| Tires | [F] Maxxis Minion DHF 29x2.5 WT, EXO, TR [R] Maxxis Dissector 29x2.4 WT, Dual, EXO, TR, tubeless |
| Extras | Tubeless prepared, max tyre size 2.5", max chainring size 32t |
| Weight | The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality. |
