The frameset, wheels, cockpit and other parts are engineered, developed and tested together to perform best as a system. The all-new OverDrive Aero steerer tube technology is combined with a Contact SLR AeroLight stem and Contact SLR handlebar to incorporate internal cable routing that also integrates the top cap, cables and spacers in a more aerodynamic, user-friendly setup
Featuring a greater stiffness-to-weight ratio than the previous generation, along with new aero tube shaping and a lighter overall weight, this uncompromising race bike delivers explosive acceleration and unyielding pedaling stiffness. The result is race-winning performance in the moments that count.

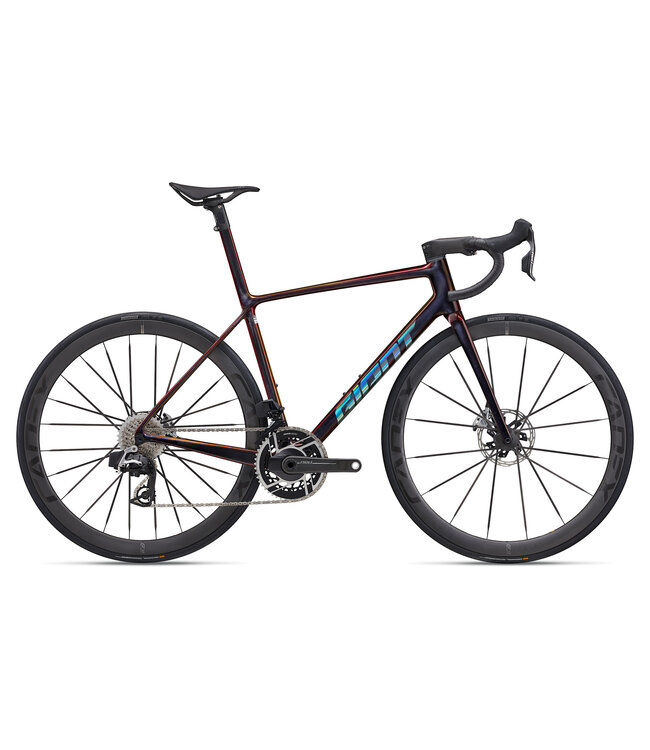

From the truncated ellipse shape of frameset tubing to a new cockpit design and component integration, it all adds up to a more streamlined profile that helps give the flagship TCR Advanced SL 0 model a 4.19-watt advantage over the previous generation.
Â
Â
A |
Seat Tube Length (mm) (inch) | 680 | 710 | 740 | 770 | 800 | 830 |
B |
Seat Tube Angle (degrees) | 74.5° | 74.0° | 73.5° | 73.0° | 73.0° | 72.5° |
C |
Top Tube Length (mm) (inch) | 520 | 535 | 550 | 565 | 580 | 600 |
D |
Head Tube Length (mm) (inch) | 120 | 130 | 145 | 165 | 185 | 200 |
E |
Head Tube Angle (degrees) | 71.0° | 72.3° | 73.0° | 73.0° | 73.0° | 73.0° |
F |
Fork Rake (mm) (inch) | 45 | 45 | 45 | 45 | 45 | 45 |
G |
Trail (mm) (inch) | 72 | 64 | 59 | 59 | 59 | 59 |
H |
Wheelbase (mm) (inch) | 976 | 977 | 980 | 991 | 1006 | 1020 |
I |
Chain Stay Length (mm) (inch) | 405 | 405 | 405 | 405 | 405 | 405 |
J |
Bottom Bracket Drop (mm) (inch) | 72 | 69.5 | 69.5 | 67 | 67 | 67 |
K |
Stack (mm) (inch) | 517 | 528 | 545 | 562 | 581 | 596 |
L |
Reach (mm) (inch) | 376 | 383 | 388 | 393 | 402 | 412 |
M |
Stand Over Height (mm) (inch) | 703 | 722 | 743 | 771 | 798 | 822 |
O |
Stem Length (mm) (inch) | 80 | 90 | 100 | 110 | 110 | 120 |
P |
Crank Length (mm) (inch) | 170 | 170 | 172.5 | 172.5 | 175 | 175 |
Q |
Wheel Size | 700C | 700C | 700C | 700C | 700C | 700C |
Â
Â
| Sizes | XS, S, M, M/L, L, XL |
| Colours | Black Lava |
| Frame | Advanced SL-Grade Composite, 12x142mm thru-axle, integrated seatpost, disc |
| Fork | Advanced SL-Grade Composite, full-composite OverDrive Aero steerer, 12x100mm thru-axle, disc |
| Shock | N/A |
| Handlebar | Giant Contact SLR XS:37/40cm, S:37/40cm, M:39/42cm, M/L:39/42cm, L:41/44cm, XL:41/44cm |
| Grips | Stratus Lite 2.0 |
| Stem | Giant Contact SLR AeroLight XS:80mm, S:90mm, M:100mm, M/L:110mm, L:110mm, XL:120mm |
| Seatpost | Giant Integrated Seatpost, -5/+15mm offset |
| Saddle | CADEX AMP |
| Pedals | N/A |
| Shifters | SRAM RED AXS HRD, ED-RED-E1 |
| Front Derailleur | SRAM RED AXS FD-RED-E-E1 |
| Rear Derailleur | SRAM RED AXS RD-RED-E-E1 |
| Brakes | SRAM RED hydraulic, SRAM PaceLine X rotors [F]160mm, [R]140mm |
| Brake Levers | SRAM RED AXS HRD, ED-RED-E1 |
| Cassette | SRAM RED, 12-speed, 10x33 |
| Chain | SRAM RED CN-RED-E1 |
| Crankset | SRAM RED PM E1 DUB, 35/48 with power meter XS:170mm, S:170mm, M:172.5mm, M/L:172.5mm, L:175mm, XL:175mm |
| Bottom Bracket | SRAM, press fit |
| Rims | CADEX Max 40 WheelSystem, [F]40mm, [R]40mm |
| Hubs | [F] CADEX R3 Hub, CenterLock, 12mm thru-axle [R] CADEX R3-C48 Aero Hub, 48t ratchet driver, CenterLock, 12mm thru-axle |
| Spokes | CADEX Aero Carbon Spoke |
| Tires | CADEX Race GC, tubeless, 700x28c (28mm), folding |
| Extras | Computer mount, tubeless prepared, 33mm max tyre size |
| Weight | The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality. |
