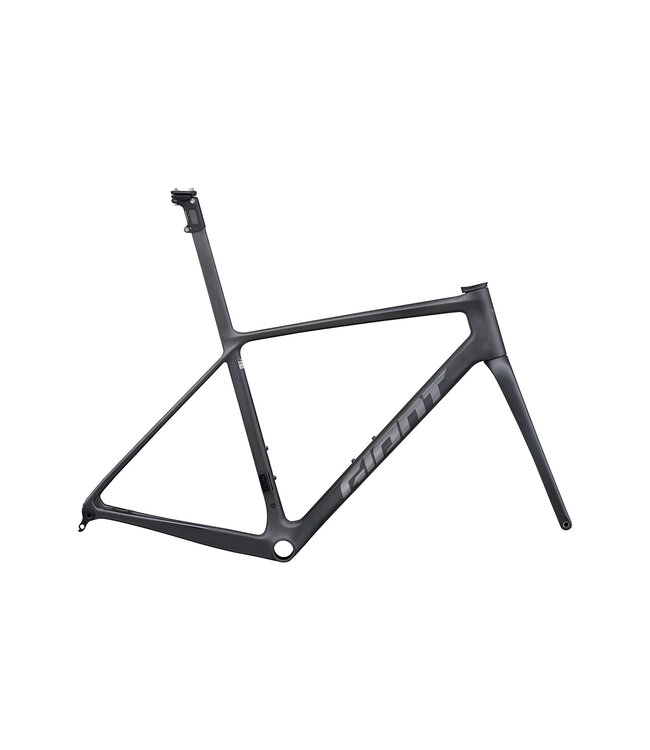

The frame, fork and integrated seatpost are engineered, developed and tested to perform as a system. The fork features a D-shaped steerer tube with corresponding spacers that, in addition to improving aerodynamics, also allows the cables to be internally routed through the handlebars, stem and frame/fork for a cleaner profile. And the signature ISP saves 40g while also adding road smoothing compliance and further improving its aero performance.
Featuring a greater stiffness-to-weight ratio than the previous generation, along with new aero tube shaping and a lighter overall weight, this uncompromising race bike delivers explosive acceleration and unyielding pedaling stiffness. The result is race-winning performance in the moments that count.
From the truncated ellipse shape of frameset tubing to a new cockpit design and component integration, it all adds up to a more streamlined profile that helps give the flagship TCR Advanced SL 0 model a 4.19-watt advantage over the previous generation.
| XS | 157 cm - 169 cm |
| S | 165 cm - 175 cm |
| M | 171 cm - 181 cm |
| ML | 177 cm - 187 cm |
| L | 183 cm - 193 cm |
| XL | 189 cm - 199 cm |
| XS | S | M | ML | L | XL | ||
|---|---|---|---|---|---|---|---|
| A | Seat Tube Length (mm) (inch) | 680 | 710 | 740 | 770 | 800 | 830 |
| B | Seat Tube Angle (degrees) | 74.5° | 74.0° | 73.5° | 73.0° | 73.0° | 72.5° |
| C | Top Tube Length (mm) (inch) | 520 | 535 | 550 | 565 | 580 | 600 |
| D | Head Tube Length (mm) (inch) | 120 | 130 | 145 | 165 | 185 | 200 |
| E | Head Tube Angle (degrees) | 71.0° | 72.3° | 73.0° | 73.0° | 73.0° | 73.0° |
| F | Fork Rake (mm) (inch) | 45 | 45 | 45 | 45 | 45 | 45 |
| G | Trail (mm) (inch) | 72 | 64 | 59 | 59 | 59 | 59 |
| H | Wheelbase (mm) (inch) | 976 | 977 | 980 | 991 | 1006 | 1020 |
| I | Chain Stay Length (mm) (inch) | 405 | 405 | 405 | 405 | 405 | 405 |
| J | Bottom Bracket Drop (mm) (inch) | 72 | 69.5 | 69.5 | 67 | 67 | 67 |
| K | Stack (mm) (inch) | 517 | 528 | 545 | 562 | 581 | 596 |
| L | Reach (mm) (inch) | 376 | 383 | 388 | 393 | 402 | 412 |
| M | Stand Over Height (mm) (inch) | 703 | 722 | 743 | 771 | 798 | 822 |
| O | Stem Length (mm) (inch) | 80 | 90 | 100 | 110 | 110 | 120 |
| P | Crank Length (mm) (inch) | 170 | 170 | 172.5 | 172.5 | 175 | 175 |
| Q | Wheel Size | 700C | 700C | 700C | 700C | 700C | 700C |
| Sizes | XS, S, M, M/L, L, XL |
| Colours | Opal, Raw Carbon, Psychedelic Green, Maraya Blue |
| Frame | Advanced SL-Grade Composite, 12x142mm thru-axle, integrated seatpost, disc |
| Fork | Advanced SL-Grade Composite, full-composite OverDrive Aero steerer, 12x100mm thru-axle, disc |
| Seatpost | Advanced SL-Grade composite, integrated design, -5/+15mm offset |
| Bottom Bracket | BB86 accepts press fit style BB only, bearing set not included |
| Extras | Front & rear 12mm thru-axles, 20mm & 45mm ISP clamps |
| Weight | The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality. |
